Same model may have multiple batches, images only for reference.

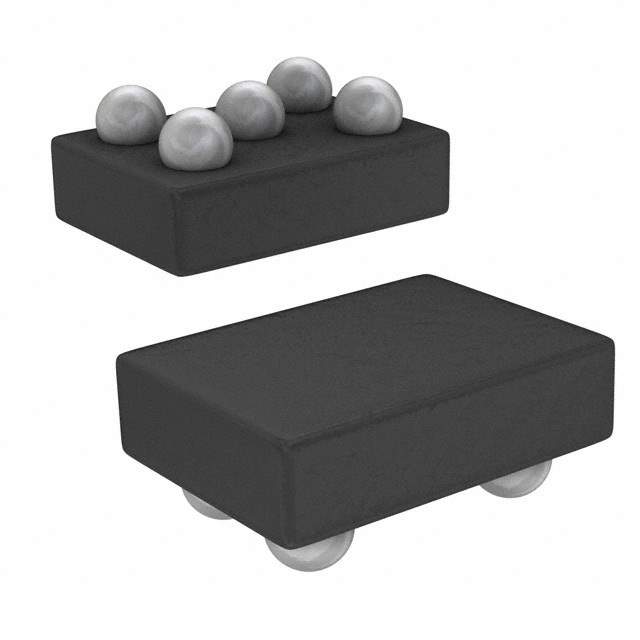

LP2985AIBPX-1.8 Real Image
Same model may have multiple batches, images only for reference.

LP2985AIBPX-1.8

Part No LP2985AIBPX-1.8
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 1.8V 0.15A 5USMD
Datasheet
LP2985AIBPX-1.8 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 16V
Nominal Output Voltage (Min/Fixed) 1.8V
Dropout Voltage-Max 0.58V @ 150mA
Output Current 150mA
Operating Supply Current 95μA to 2.5mA
PSRR 45dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 1.8V
Voltage - Dropout (Typical) 0.28V @ 150mA
Mounting SMD (SMT)
Case / Package 5-uSMD
Win Source Part Number 071772-LP2985AIBPX-1.8
Ultra Librarian 3D Model Ultra Librarian LP2985AIBPX-1.8 CAD Model

Description

The LP2985AIBPX-1.8 is a high-performance, micro-power voltage regulator manufactured by Texas Instruments. This product is designed to meet the rigorous demands of today's high-performance, power-sensitive applications. The LP2985AIBPX-1.8 is a part of the LP2985 family of products which are known for their robust performance, high output accuracy, and low noise characteristics.

  • Output Voltage: 1.8V
  • Load Current: 150mA
  • Applications: Portable devices, mobile phones, and other battery-powered devices
  • Features: Low dropout voltage, low quiescent current, thermal shutdown, current limit, enable pin, RoHS compliant
  • Package: Compact, space-saving
