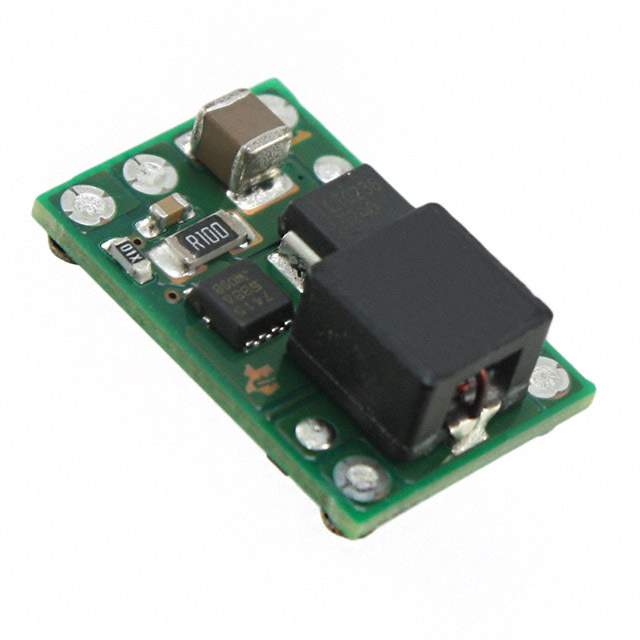

The PTN78000AAST is a high-performance, adjustable step-down switcher module from Texas Instruments that brings a blend of flexibility and efficiency to your power design projects. This module is part of the PTN78000 series, which is renowned for its wide-input voltage range and the ability to provide a stable output voltage over a broad range of conditions.

Key Features

• Wide Input Voltage Range: The PTN78000AAST can handle an input voltage range from 7V to 36V, making it highly versatile for various applications.
• Adjustable Output Voltage: Users can adjust the output voltage from 2.5V to 12.6V, providing flexibility for different circuit requirements.
• High Efficiency: This module is designed for high efficiency, which can reach up to 96%. This means less power is wasted as heat, leading to a more reliable and cooler operation.
• Integrated Heat Sink: The inclusion of an integrated heat sink simplifies thermal management and enhances the module's performance in challenging thermal environments.
• Output Current: It can deliver up to 3A of output current, suitable for a variety of power-hungry applications.
• Protection Features: The PTN78000AAST comes with built-in overcurrent and over-temperature protection, ensuring the safety and longevity of both the module and your application.

Applications

The module's robustness and adaptability make it ideal for a wide range of applications, including but not limited to:

• Industrial/automation control systems
• Telecommunications equipment
• Distributed power systems
• Portable devices
• Test equipment

Conclusion

With its wide input voltage range, adjustable output, high efficiency, and comprehensive protection features, the PTN78000AAST from Texas Instruments stands out as a reliable and versatile solution for your power supply needs. Whether you are working on industrial, telecommunications, or portable applications, this power module is engineered to meet the most demanding requirements, ensuring a stable and efficient power supply.
