Overview of Texas Instruments TPS53119RGTR

The TPS53119RGTR is a highly efficient synchronous buck controller designed by Texas Instruments (TI) for precision voltage regulation in various electronic applications. This compact, integrated circuit is ideal for systems requiring low output voltage and high current, such as notebooks, ultrabooks, and other portable computing devices.

Key Features

• Input Voltage Range: The TPS53119RGTR operates over a wide input voltage range of 3 V to 28 V, making it versatile for different power environments.
• Output Voltage: It provides an adjustable output voltage that can be set as low as 0.6 V with a high accuracy rate, catering to modern microprocessors and chipsets that require precise voltage levels.
• Eco-mode™ Operation: TI's proprietary Eco-mode™ feature ensures high efficiency at light loads, reducing power consumption and extending battery life in portable applications.
• Protection Features: The device is equipped with a comprehensive set of protection features, including over-voltage, under-voltage, over-current, and thermal shutdown to ensure the safety and reliability of the end application.
• Switching Frequency: It supports a programmable switching frequency from 300 kHz to 2.5 MHz, allowing designers to optimize performance and component size.

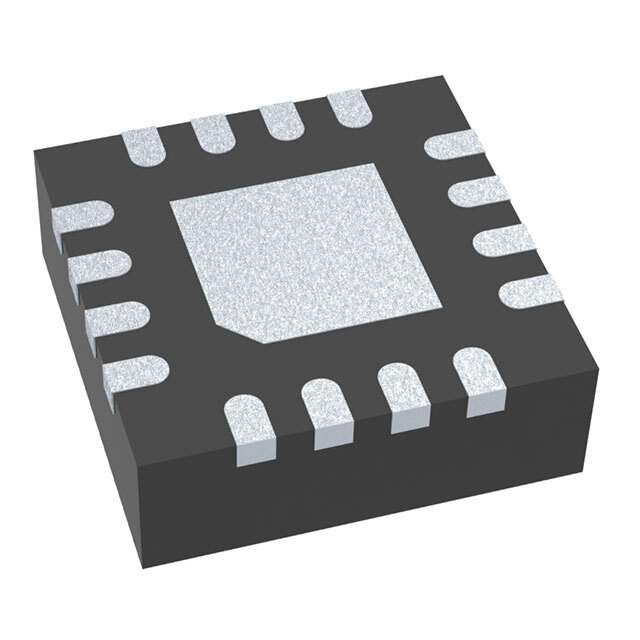

• Package: TPS53119RGTR comes in a compact 16-pin QFN package, which is suitable for space-constrained applications.

Applications

With its versatile input voltage range and low output voltage capability, the TPS53119RGTR is an excellent choice for a variety of applications, including:

• Notebook and Ultrabook Computers
• Netbooks and Tablets
• Graphics Cards
• Memory Power Supplies
• Embedded Systems

Design Flexibility

Designers can leverage the TPS53119RGTR's flexible control interface, which includes features such as Power Good (PG) output, soft start, and enable pin, to create highly optimized power management solutions. The device's high level of integration and advanced control features help reduce external component count, thereby saving board space and reducing overall system cost.

The TPS53119RGTR from Texas Instruments represents a balance of efficiency, performance, and reliability, making it a top choice for power supply designers looking to meet stringent power requirements in compact electronic systems.
