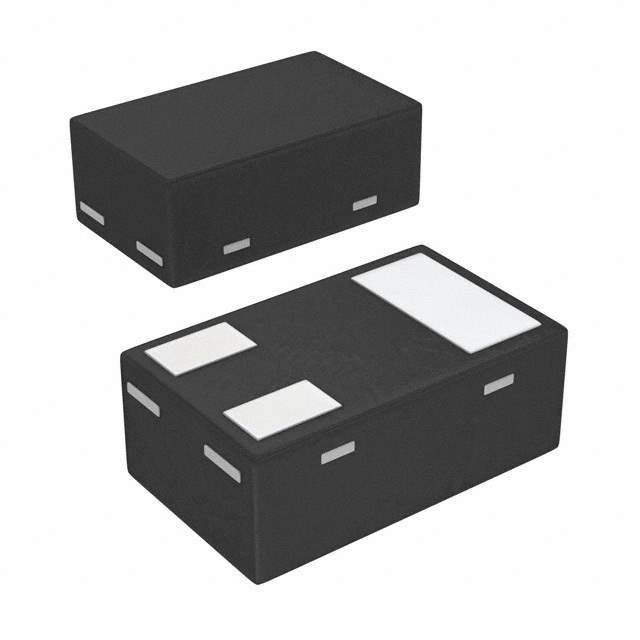

The 2SA2154CT-GR is a PNP silicon epitaxial planar transistor manufactured by Toshiba Semiconductor and Storage. It is designed for switching and amplifier applications, with a focus on low saturation voltage and high current capability. The 'CT' in the part number indicates a specific lead forming, and the 'GR' refers to a gain ranking within the production batch.

Applications

• Switching regulators: Used in DC-DC converters for efficient power conversion.
• Motor drivers: Employed to control the speed and direction of small DC motors.
• Load switches: Used to enable or disable power to specific sections of a circuit.
• General-purpose amplification: Suitable for a wide range of amplification needs in electronic circuits.

Features

• PNP silicon epitaxial planar transistor.
• Low saturation voltage.
• High collector current capability.
• High gain.
• Compact package.

Benefits

• Enables efficient switching in high-speed circuits.
• Contributes to low power loss due to its low saturation voltage.
• Allows for high current control.

Technical Specifications (Typical)

• Collector-Base Voltage (VCBO): -60V
• Collector-Emitter Voltage (VCEO): -50V
• Emitter-Base Voltage (VEBO): -6V
• Collector Current (IC): -3A
• Collector Power Dissipation (PC): 1W
• Current Gain (hFE): Typically between 100 and 300, depending on the 'GR' ranking.
• Operating Junction Temperature: 150°C

The 2SA2154CT-GR is an excellent choice for applications requiring efficient switching and high current control. Its low saturation voltage minimizes power loss, while its high current capability makes it suitable for driving various loads. The 'GR' ranking allows for selection of transistors with specific hFE characteristics, enabling optimized circuit performance. This transistor is suitable for various applications, especially in power management and motor control circuits.
