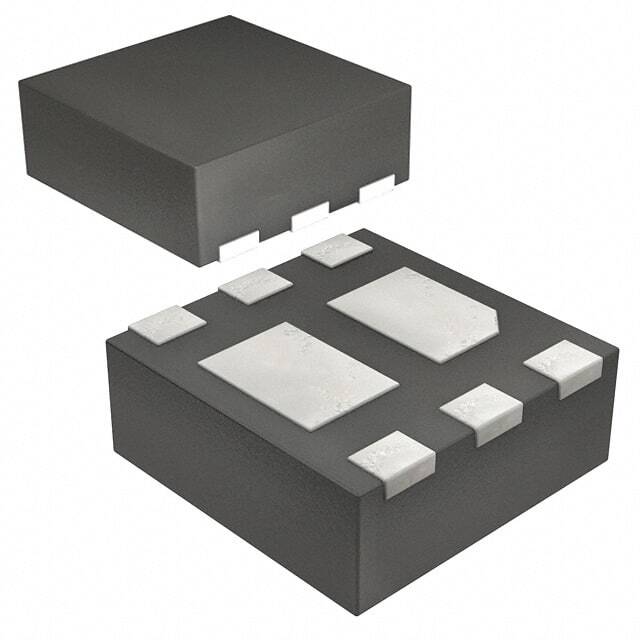

Same model may have multiple batches, images only for reference.

SSM6N68NU,LF

Name: SSM6N68NU,LF
Brand: Toshiba Semiconductor and Storage
SKU: 1096298
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SSM6N68NU,LF
Manufacturer	Toshiba Semiconductor and Storage
Catalog	TRANSISTORS
Description	MOSFETs LowON Res MOSFET ID=4A VDSS=30V
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Toshiba
Technology	Si
Mounting Style	SMD/SMT
Package / Case	UDFN-6
Transistor Polarity	N-Channel
Number of Channels	2 Channel
Vds - Drain-Source Breakdown Voltage	30 V
Id - Continuous Drain Current	4 A
Rds On - Drain-Source Resistance	84 mOhms
Vgs - Gate-Source Voltage	- 8 V, + 12 V
Vgs th - Gate-Source Threshold Voltage	1 V
Qg - Gate Charge	1.8 nC
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Pd - Power Dissipation	1 W
Channel Mode	Enhancement
Qualification	AEC-Q101
Tradename	U-MOSVII-H
Series	SSM6N68NU
Packaging	Cut Tape
Packaging	Reel
Configuration	Dual
Transistor Type	1 N-Channel
Brand	Toshiba
Forward Transconductance - Min	5.2 S
Product Type	MOSFETs
Standard Pack Qty	3000
Subcategory	Transistors
Typical Turn-Off Delay Time	9 ns
Typical Turn-On Delay Time	26 ns
Ultra Librarian 3D Model	Ultra Librarian SSM6N68NU,LF CAD Model

Alternative Products

Description

The Toshiba Semiconductor and Storage SSM6N68NU,LF is a dual N-channel MOSFET array.

Drain to Source Voltage (Vdss): 30V
Continuous Drain Current (Id): 4A (Ta)
Rds On (Max) @ Id, Vgs: 84mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id: 1V @ 1mA
Power Rating: 2W (Ta)
Gate Charge (Qg) (Max) @ Vgs: 1.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds: 129pF @ 15V
Mounting Technology: SMD (SMT)
Packaging: tape and reel
MSL Level: 1 (unlimited)
HTSUS: 8541.29.0095
