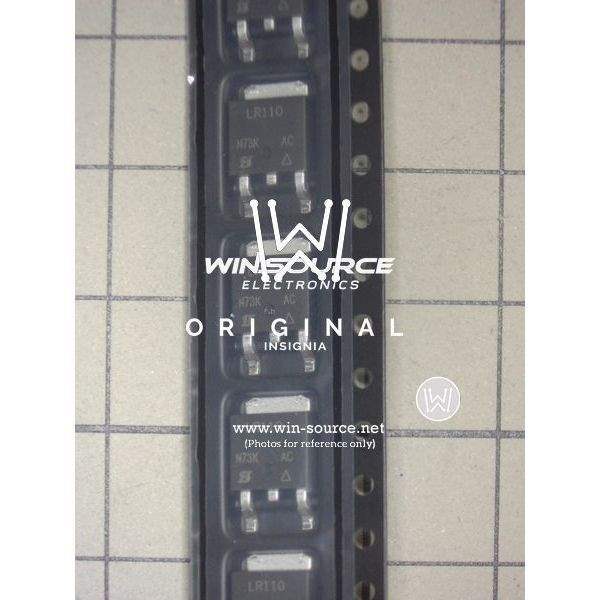

IRLR110TRPBF Real Image IRLR110TRPBF real image
Same model may have multiple batches, images only for reference.
IRLR110TRPBF Real Image IRLR110TRPBF real image
IRLR110TRPBF Real Image IRLR110TRPBF real image
Same model may have multiple batches, images only for reference.

IRLR110TRPBF

Part No IRLR110TRPBF
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 100V 4.3A DPAK
Datasheet
IRLR110TRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 100V
Continuous Drain Current at 25°C 4.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4V, 5V
Gate-Source Threshold Voltage 2V @ 250μA
Max Gate Charge 6.1nC @ 5V
Max Input Capacitance 250pF @ 25V
Maximum Gate-Source Voltage ±10V
Power Dissipation (Max) 2.5W (Ta), 25W (Tc)
Maximum Rds On at Id,Vgs 540 mOhm @ 2.6A, 5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package D-Pak
Dimension TO-252-3, DPak (2 Leads + Tab), SC-63
Win Source Part Number 093228-IRLR110TRPBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian IRLR110TRPBF CAD Model

Description

The Vishay IRLR110TRPBF is an N-channel MOSFET transistor with a drain-source breakdown voltage of 100V and a continuous drain current of 4.3A at 25°C.

  • Gate-Source Threshold Voltage: 2V @ 250μA
  • Maximum Gate-Source Voltage: ±10V
  • Temperature Range: -55°C to 150°C
  • Power Dissipation: 2.5W (Ta) and 25W (Tc)
  • Popularity: high
  • Manufacturer Package: TO-252-3, DPak (2 Leads + Tab), SC-63
