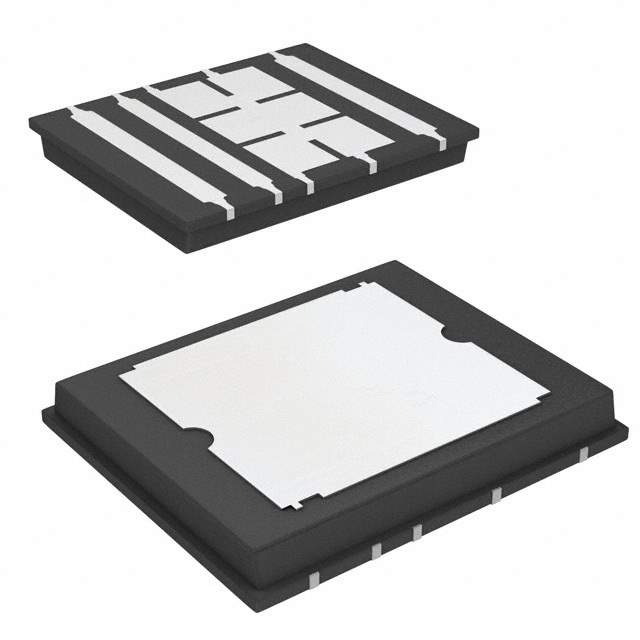

SIE806DF-T1-E3 Real Image
Same model may have multiple batches, images only for reference.

SIE806DF-T1-E3

Part No SIE806DF-T1-E3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 60A 10-POLARPAK
Datasheet
SIE806DF-T1-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2V @ 250μA
Max Gate Charge 250nC @ 10V
Max Input Capacitance 13000pF @ 15V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 5.2W (Ta), 125W (Tc)
Maximum Rds On at Id,Vgs 1.7 mOhm @ 25A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 10-PolarPAK (L)
Dimension 10-PolarPAK (L)
Win Source Part Number 097682-SIE806DF-T1-E3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SIE806DF-T1-E3 CAD Model

Description

The Vishay SIE806DF-T1-E3 is an N-channel MOSFET transistor that is used for various applications such as power supply, motor control, and LED lighting.

  • Product Status: obsolete (EOL)
  • Packaging: reel
  • Manufacturer: Vishay
  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current @ 25°C: 60A
  • Maximum Rds On: 1.7 mOhm @ 25A and 10V
  • Applications: automotive, industrial, and consumer electronics
