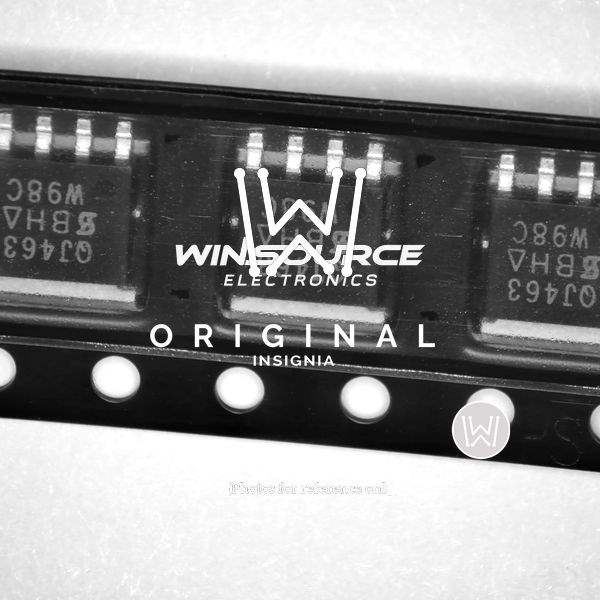

Same model may have multiple batches, images only for reference.

SQJ463EP-T1_GE3

Name: SQJ463EP-T1_GE3
Brand: Vishay
SKU: 792806
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

Part No	SQJ463EP-T1_GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET P-CH 40V 30A / Trans MOSFET P-CH 40V 30A Automotive 5-Pin(4+Tab) PowerPAK SO EP T/R
Datasheet	SQJ463EP-T1_GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Vishay Siliconix
Series	Automotive, AEC-Q101, TrenchFET
Packaging	Reel package
Channel Type Type	P
Technology	MOSFET
Drain Source Voltage	40V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Vgs(th) (Maximum) @ Id	2.5V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs	150nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds	5875pF @ 20V
Vgs (Maximum)	±20V
Power Dissipation (Maximum)	83W (Tc)
Rds On (Maximum) @ Id, Vgs	10 mOhm @ 18A, 10V
Operating Temperature Range	-55°C ~ 175°C (TJ)
Mounting	SMD
Manufacturer Package	PowerPAK SO-8
Package	PowerPAK SO-8
Win Source Part Number	792806-SQJ463EP-T1_GE3
Popularity	Medium
Supply and Demand Status	Limited
Family Name	SQJ463EP
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2022
Ultra Librarian 3D Model	Ultra Librarian SQJ463EP-T1_GE3 CAD Model

Alternative Products

Description

The Vishay Siliconix SQJ463EP-T1_GE3 MOSFET is a power P-channel type with a current rating of 30A (Tc).

Drain-Source Voltage: 40V
Gate-Source Voltage (Vgs(th)): 2.5V @ 250μA
Operating Temperature Range: -55°C to 175°C (TJ)
Power Dissipation: 83W (Tc)
Technology: TrenchFET
Package: PowerPAK SO-8
Gate Charge (Qg) (Maximum) @ Vgs: 150nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds: 5875pF @ 20V
Channel Type: P
Rds On (Maximum) @ Id, Vgs: 10 mOhm @ 18A, 10V
