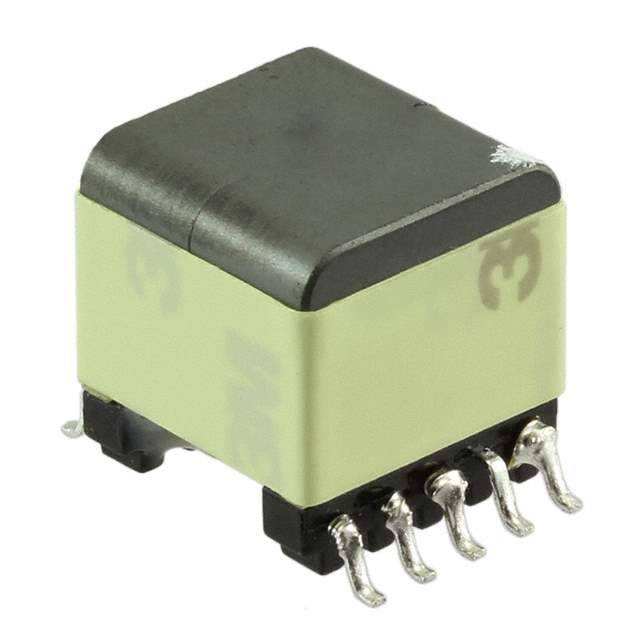

7491195112 Real Image
Same model may have multiple batches, images only for reference.

7491195112

Part No 7491195112
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description TRANS FLYBACK POE SMD
Datasheet
7491195112 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Switching Converter, SMPS Transformers
Mfr Wurth Electronics Inc
Series WE-PoEH
Package Tape & Reel
Product Status Active
Type For DC/DC Converters
Applications Power Over Ethernet (PoE)
Voltage - Primary 33 ~ 57V
Voltage - Auxiliary 10V
Voltage - Isolation 1500Vrms
Inductance @ Frequency 41µH @ 100kHz
Frequency 200 ~ 400kHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.551" L x 0.591" W (14.00mm x 15.00mm)
Height - Seated (Max) 0.571" (14.50mm)
Footprint 0.551" L x 0.591" W (14.00mm x 18.10mm)
Standard Package 150 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 857646-7491195112
Ultra Librarian 3D Model Ultra Librarian 7491195112 CAD Model

Description

The WE-PoEH is a switching converter transformer designed for power over Ethernet (PoE) applications.

  • Size: 0.551" L x 0.591" W (14.00mm x 15.00mm)
  • Seated Height: 0.571" (14.50mm)
  • Frequency: 200 ~ 400kHz
  • Inductance: 41µH @ 100kHz
  • Voltage Isolation: 1500Vrms
  • Primary Voltage: 33 ~ 57V
  • Mounting Type: Surface Mount
  • Package: Tape & reel
  • Standard Package: 150 pcs
  • Operating Temperature: -40°C to 125°C
  • Manufacturer: Wurth Electronics Inc
