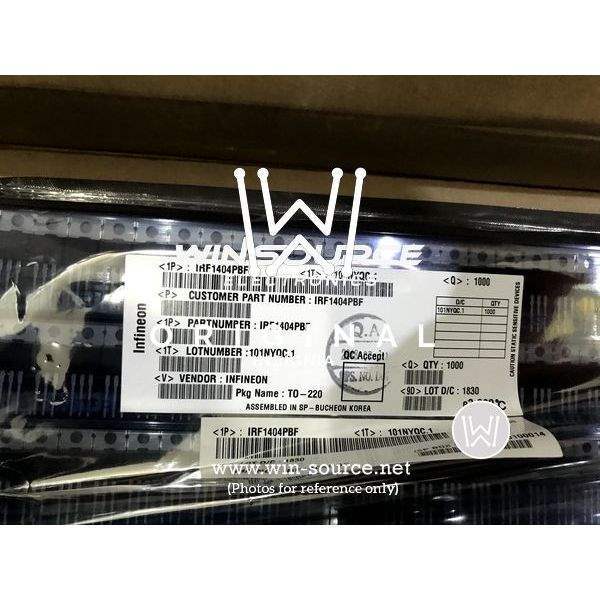

IRF1404PBF Infineon Technologies IRF1404PBF label picture
Same model may have multiple batches, images only for reference.
IRF1404PBF Infineon Technologies IRF1404PBF label picture
IRF1404PBF Infineon Technologies IRF1404PBF label picture
Same model may have multiple batches, images only for reference.

IRF1404PBF

Part No IRF1404PBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 202A TO-220AB
Datasheet
IRF1404PBF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 202A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 196nC @ 10V
Max Input Capacitance 5669pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 333W (Tc)
Maximum Rds On at Id,Vgs 4 mOhm @ 121A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package TO-220AB
Dimension TO-220-3
Win Source Part Number 091585-IRF1404PBF
Family Name IRF1404
Introduction Date February 02, 2004
ECCN EAR99
Country of Origin China, Philippines
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRF1404PBF CAD Model

Description

The IRF1404PBF is a power MOSFET transistor manufactured by Infineon Technologies.

  • Applications: DC/DC converters, power supplies, and motor control circuits
  • On-State Resistance: 4 mOhm
  • Maximum Drain-Source Voltage: 40 V
  • Continuous Drain Current: 202 A
  • Package Type: TO-220AB (through-hole package)
