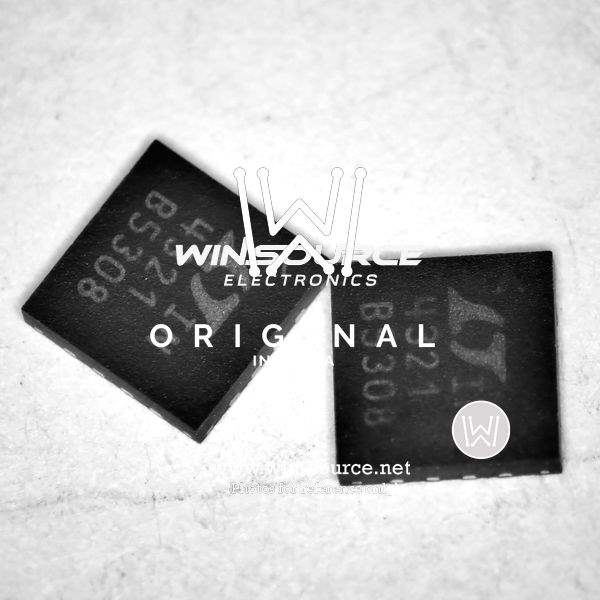

The LT4321IUF#PBF is a pioneering solution from Linear Technology designed to enhance the efficiency of rectifier bridges. This innovative product serves as an ideal diode bridge controller that replaces the four diodes in a full-wave bridge rectifier with low-loss MOSFETs. The result is a dramatic reduction in power dissipation and heat, leading to a more efficient and reliable system operation.

Key Features

• Wide Operating Voltage Range: Capable of handling voltages from 9V to 72V, the LT4321IUF#PBF is versatile and can be used in a wide array of applications.
• Low Power Dissipation: By replacing traditional diodes with MOSFETs, the power dissipation is significantly reduced, which is crucial for energy-sensitive applications.
• Smooth Switchover: The controller ensures seamless transitions between forward and reverse conduction, which minimizes stress on the system and enhances longevity.
• High Temperature Operation: With an industrial temperature range, this device is capable of operating in harsh environments, maintaining performance from -40°C to 125°C.

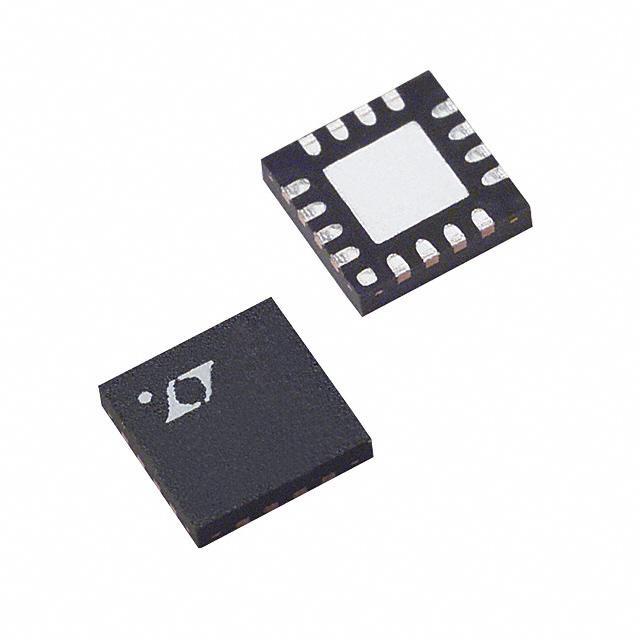

• Small Package: The LT4321IUF#PBF comes in a compact 16-lead QFN package, saving valuable board space and simplifying design.

Applications

The LT4321IUF#PBF is ideal for a variety of applications where efficiency and thermal performance are critical. Common uses include:

• Power-over-Ethernet (PoE) systems
• Industrial automation
• Telecommunication infrastructure
• Automotive systems
• High-efficiency power supplies

Benefits

Integrating the LT4321IUF#PBF into your design can lead to numerous benefits, including reduced heat sink requirements, lower cooling costs, and the potential for smaller power supplies. Its efficiency gains also contribute to a greener and more sustainable operation, making it an environmentally friendly choice for modern electronics.
