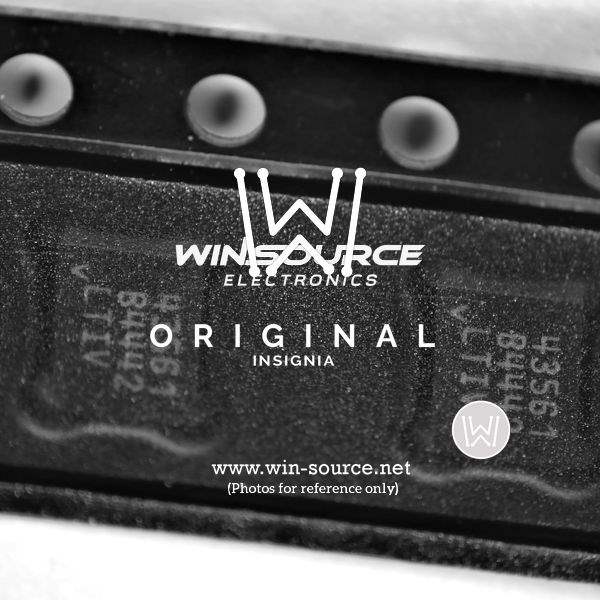

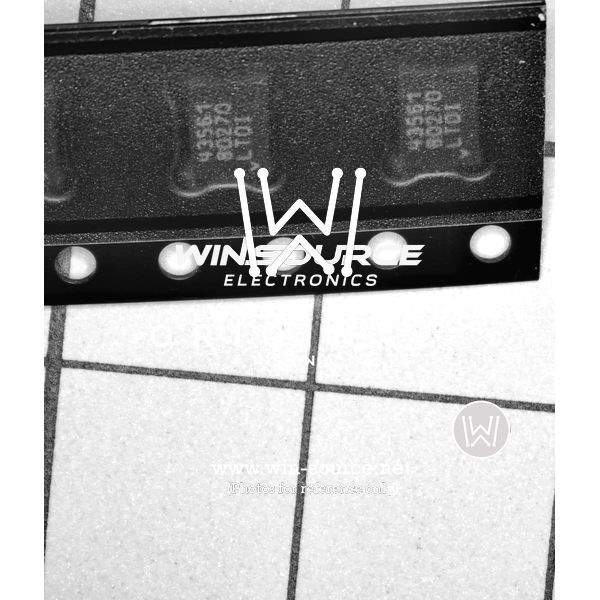

Linear Technology's LT4356HDE-1 Surge Stopper

The LT4356HDE-1 from Linear Technology is a robust surge stopper designed to protect sensitive electronic circuits from high voltage spikes and surges. This device operates by controlling the gate voltage of an external N-channel MOSFET to act as a variable resistor, thus limiting the output voltage during a transient event without the need for bulky inductors or capacitors. It is the ideal solution for safeguarding automotive, industrial, avionics, and medical applications where electronic components can be exposed to high voltage transients.

Featuring a wide operating voltage range of 4V to 80V, the LT4356HDE-1 is versatile enough to handle a broad spectrum of power supply configurations. The surge stopper is capable of withstanding temporary overvoltage events up to 100V, ensuring that downstream electronics remain protected even under extreme conditions. In addition, its overcurrent output protection is adjustable, allowing for precise control tailored to the needs of the specific application.

The LT4356HDE-1 is designed with an adjustable undervoltage lockout, which ensures that the device remains off if the supply voltage is insufficient, thus preventing undervoltage damage to the load. A fault indicator pin provides immediate feedback in the event of an overcurrent or overvoltage condition, enabling rapid system response and troubleshooting.

This surge stopper also boasts a low quiescent current, making it suitable for continuous operation in power-sensitive systems. Its robust design includes a high-temperature operational capability, packaged in a 12-pin 4mm x 3mm DFN package, which is conducive to space-constrained applications.

The LT4356HDE-1 is an essential component for any design engineer looking to enhance the reliability and durability of their power supply systems. With its advanced features and solid performance, it provides a shield against voltage transients, ensuring the longevity and stability of electronic devices in the most challenging environments.
