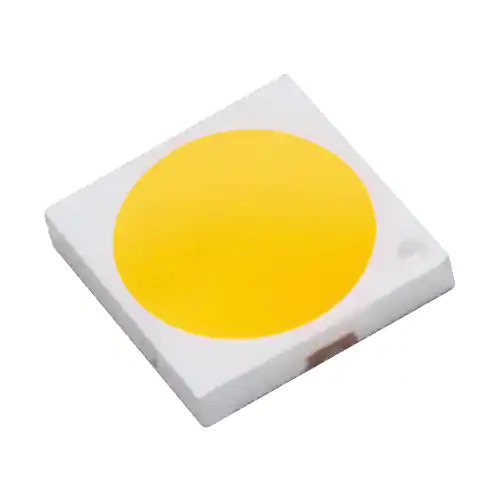

L130-5080003000W21 Lumileds
Same model may have multiple batches, images only for reference.

L130-5080003000W21

Part No L130-5080003000W21
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON COOL WHITE 5000K 2SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - White LED Lighting
Mfr Lumileds
Series LUXEON 3030 2D
Package Tape & Reel
Product Status Active
Color White, Cool
CCT (K) 5000K
Flux @ 85°C, Current - Test -
Flux @ 25°C, Current - Test 96lm (Typ)
Current - Test 120mA
Voltage - Forward (Vf) (Typ) 6.1V
Lumens/Watt @ Current - Test 131 lm/W
CRI (Color Rendering Index) 80
Current - Max 240mA
Viewing Angle -
Mounting Type Surface Mount
Package / Case 1212 (3030 Metric)
Supplier Device Package 3030
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.024" (0.62mm)
Thermal Resistance of Package 12°C/W
Base Product Number L130
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371875-L130-5080003000W21
Ultra Librarian 3D Model Ultra Librarian L130-5080003000W21 CAD Model

Description

The L130 Luxeon 3030 2D LED is a high-quality white LED designed for white LED lighting applications from Lumileds.

  • Size: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Current Rating: 240mA
  • Forward Voltage: 6.1V
  • Mounting Type: Surface Mount
  • Package: 1212 (3030 Metric)
  • Status: Active
