Same model may have multiple batches, images only for reference.

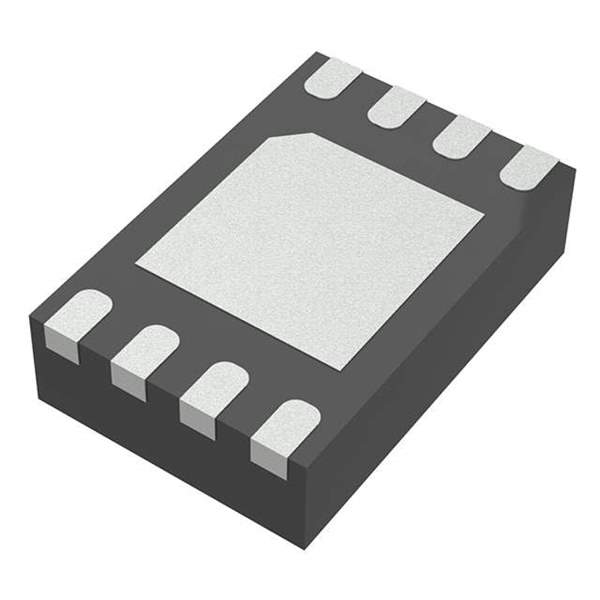

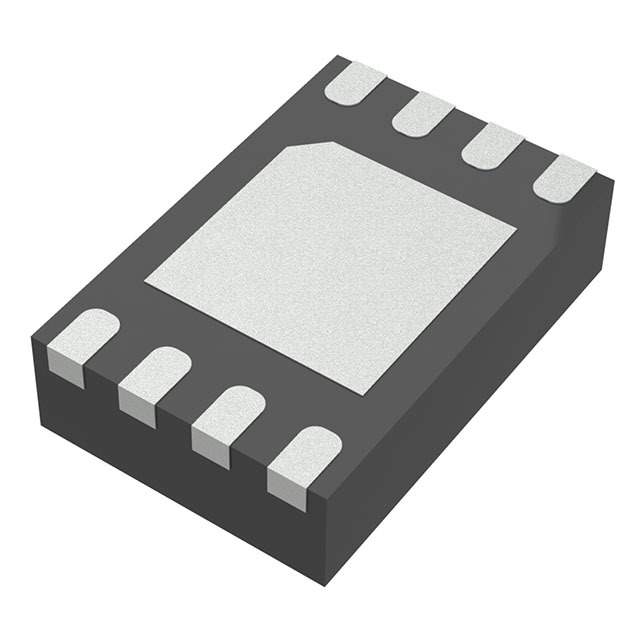

MP2016DD-LF-P Real Image
Same model may have multiple batches, images only for reference.

MP2016DD-LF-P

Part No MP2016DD-LF-P
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR POS ADJ 30MA 8QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Monolithic Power Systems Inc.
Packaging Reel
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 42V
Voltage - Output (Min/Fixed) 1.2V
Maximum Output Voltage 40V
Maximum Dropout Voltage 0.9V at 30mA
Current - Output 30mA
Current - Quiescent (Iq) 30μA
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 8-TFDFN Exposed Pad
Supplier Device Package 8-QFN (2x3)
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810033-MP2016DD-LF-P
Ultra Librarian 3D Model Ultra Librarian MP2016DD-LF-P CAD Model

Description

The Monolithic Power Systems Inc. MP2016DD-LF-P is a power management IC.

  • Output Type: Adjustable
  • Output Configuration: Positive
  • Maximum Input Voltage: 42V
  • Maximum Output Voltage: 40V
  • Temperature Range: -40°C ~ 85°C
  • Current Output: 30mA
  • Manufacturer Package: 8-TFDFN Exposed Pad
