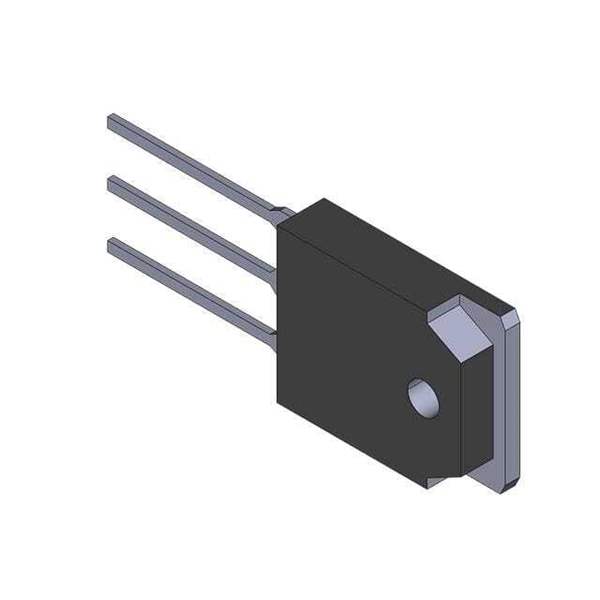

ON Semiconductor 2SC3256R NPN Transistor

The 2SC3256R is a high-performance NPN bipolar transistor designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This transistor is ideal for use in a variety of electronic applications, including but not limited to power management, signal amplification, and switching applications.

Key Features

• High Current Capability: The 2SC3256R is capable of handling high current, making it suitable for power amplification and high-power switching applications.
• Fast Switching Speeds: Engineered for quick response times, this transistor is an excellent choice for circuits requiring fast switching.
• Low Saturation Voltage: It exhibits low V<sub>CE(sat) voltage, which translates to reduced power loss and improved efficiency in operation.
• High Reliability: ON Semiconductor's commitment to quality ensures that the 2SC3256R is reliable for long-term use across various temperature ranges and operating conditions.
• Complementary PNP Type: The 2SC3256R has a complementary PNP type available, allowing for flexibility in designing push-pull amplifier configurations.

Applications

The versatility of the 2SC3256R NPN transistor allows it to be used in a wide array of applications, including:

• Audio Power Amplifiers
• DC-DC Converters
• Switching Regulators
• Motor Control Circuits
• Driver Stages in Hi-Fi Amplifiers and Television Circuits

Technical Specifications

With a collector-emitter voltage (V<sub>CEO) of 120V and a collector current (I<sub>C) of up to 1A, the 2SC3256R is designed to handle demanding power requirements. Its transition frequency (f<sub>T) is rated at 100MHz, providing the necessary bandwidth for high-speed signal processing.

Quality and Environmental Compliance

ON Semiconductor is dedicated to environmental stewardship and the 2SC3256R is manufactured to meet industry standards for environmental compliance, ensuring that it is suitable for use in environmentally-sensitive products.

For detailed information about the 2SC3256R, including mechanical data, thermal characteristics, and electrical ratings, refer to the official ON Semiconductor datasheets and product documentation.
