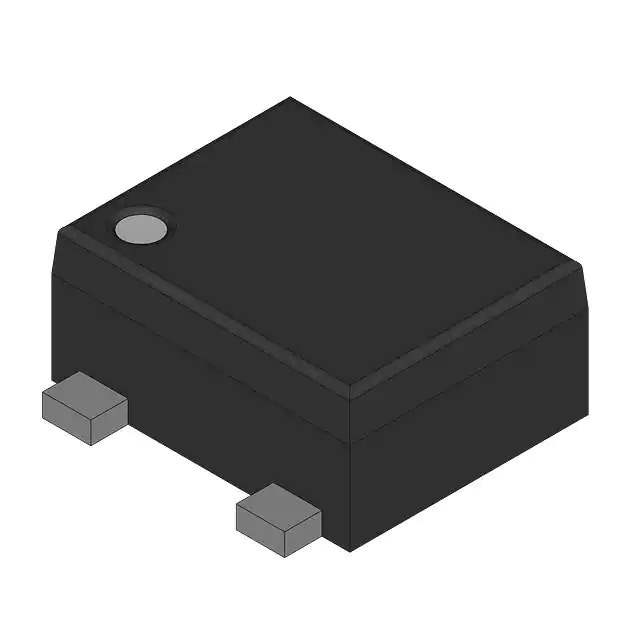

ON Semiconductor MCH3319-TL-E MOSFET

The MCH3319-TL-E from ON Semiconductor is a high-performance, P-Channel MOSFET that is designed to meet a wide range of application requirements. This MOSFET is a testament to ON Semiconductor's commitment to providing energy-efficient solutions to the electronics industry. It is commonly utilized in power management applications due to its low on-resistance and high-speed switching capabilities.

Key Features

• Device Type: P-Channel MOSFET
• Drain-Source Voltage (V<sub>DS): -20V
• Continuous Drain Current (I<sub>D): -6A
• Power Dissipation (P<sub>D): 1.25W
• Gate-Source Voltage (V<sub>GS): ±8V
• Static Drain-Source On-Resistance (R<sub>DS(on)): 28 mOhm
• Package: SuperSOT™-6

Product Advantages

The MCH3319-TL-E MOSFET is designed for applications that require a balance between performance and power efficiency. The device offers a low threshold voltage, making it suitable for low-voltage drive applications. Its compact SuperSOT™-6 package allows for high-density mounting, which is beneficial for space-constrained designs.

Furthermore, with its fast switching speed, the MCH3319-TL-E is ideal for high-frequency applications, such as DC/DC converters, power management in portable devices, load switches, and battery protection circuits. The product's low on-resistance minimizes conduction losses, thereby enhancing overall system efficiency.

Applications

This MOSFET is versatile and can be used in a variety of applications, including:

• Power Management Systems
• DC/DC Converters
• Load Switches
• Portable Devices
• Battery Management Circuits
• Reverse Battery Protection

Quality and Reliability

ON Semiconductor is known for its high standards of quality and reliability, and the MCH3319-TL-E is no exception. It is manufactured to meet stringent requirements, ensuring stable performance over its operational lifespan. Customers can trust this MOSFET to deliver consistent functionality and durability in their electronic designs.
