Same model may have multiple batches, images only for reference.

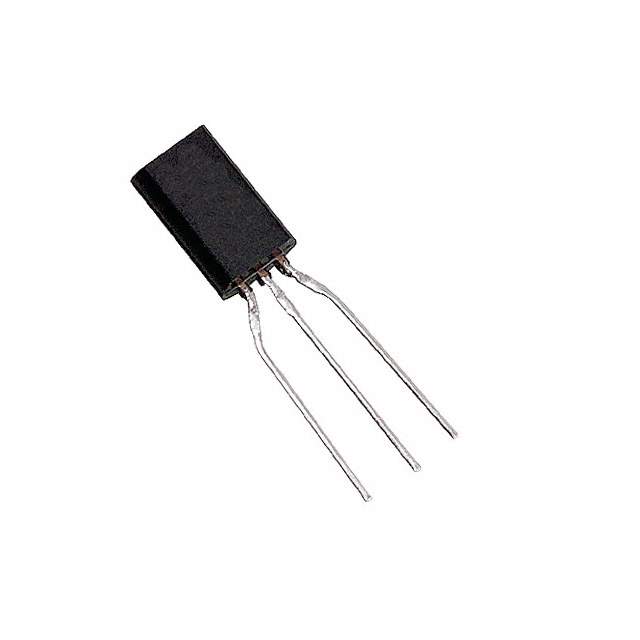

2SC1573BR Real Image
Same model may have multiple batches, images only for reference.

2SC1573BR

Part No 2SC1573BR
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN 400V 0.07A TO-92L
Datasheet
2SC1573BR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Part Status Obsolete(EOL)
Transistor Type NPN
Current - Collector (Ic) (Maximum) 70mA
Voltage - Collector Emitter Breakdown (Maximum) 400V
Vce Saturation (Maximum) @ Ib, Ic 1.2V @ 5mA, 50mA
Current - Collector Cutoff (Maximum) 10μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 100 @ 5mA, 10V
Power - Max 1W
Frequency - Transition 80MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-226-3, TO-92-3 Long Body
Manufacturer Package TO-92L-A1
Win Source Part Number 762547-2SC1573BR
Popularity Medium
Supply and Demand Status Limited
Family Name 2SC1573BR
Introduction Date October 08, 1998
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 2SC1573BR CAD Model

Description

The 2SC1573BR is a transistor type NPN that has a maximum power of 1W.

  • Frequency Transition: 80MHz
  • Current Collector (Ic) maximum: 70mA
  • Voltage collector emitter breakdown (maximum): 400V
  • Vce saturation (maximum) @ Ib, Ic: 1.2V @ 5mA, 50mA
  • Package: TO-226-3, TO-92-3 Long Body
  • ECCN: EAR99
  • HTSUS: 8542.39.0001

The 2SC1573BR is manufactured by Panasonic Electronic Components.
