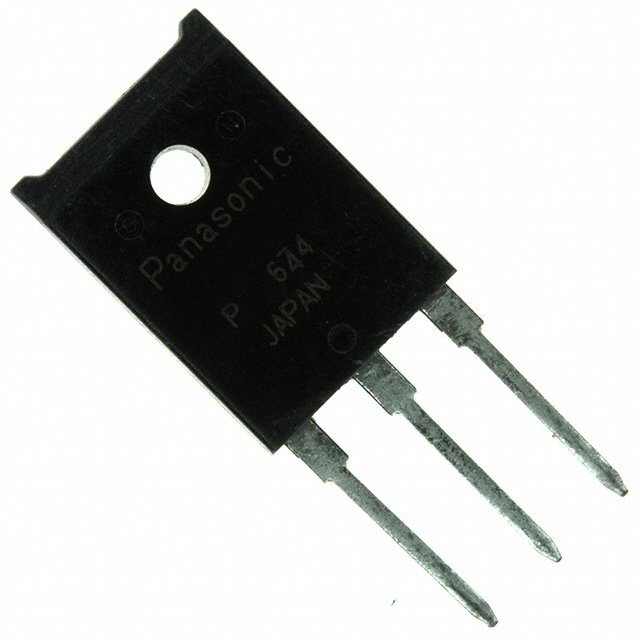

2SD17070P Panasonic
Same model may have multiple batches, images only for reference.

2SD17070P

Part No 2SD17070P
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN 80V 20A TOP-3F
Datasheet
2SD17070P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Part Status Obsolete(EOL)
Transistor Type NPN
Current - Collector (Ic) (Maximum) 20A
Voltage - Collector Emitter Breakdown (Maximum) 80V
Vce Saturation (Maximum) @ Ib, Ic 1.5V @ 2A, 20A
Current - Collector Cutoff (Maximum) 10μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 130 @ 3A, 2V
Power - Max 3W
Frequency - Transition 20MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TOP-3F
Manufacturer Package TOP-3F-A1
Win Source Part Number 762808-2SD17070P
Popularity Medium
Supply and Demand Status Limited
Family Name 2SD1707
Introduction Date June 20, 2001
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 2SD17070P CAD Model

Description

The Panasonic Electronic Components NPN transistor is a high-quality product.

  • Maximum Power: 3W
  • Maximum Current Rating: 20A
  • Voltage Rating (collector-emitter breakdown): 80V
  • Vce saturation (maximum) @ Ib, Ic: 1.5V @ 2A, 20A
  • DC current gain (hFE) (minimum) @ Ic, Vce: 130 @ 3A, 2V
  • Frequency transition: 20MHz
  • Mounting: Through-hole
