2SD1823GRL

Part No 2SD1823GRL
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN 40V 0.05A SMINI-3
Datasheet
2SD1823GRL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity NPN
Maximum Current Collector 50mA
VCEO Maximum Collector-Emitter Breakdown Voltage 40V
Max Vce (sat) 200mV @ 1mA, 10mA
Collector Cut-off Current(Max) 1μA
Typical Gain (hFE) (Min) 400 @ 2mA, 10V
Maximum Power Dissipation 150mW
Frequency - Transition 120MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)

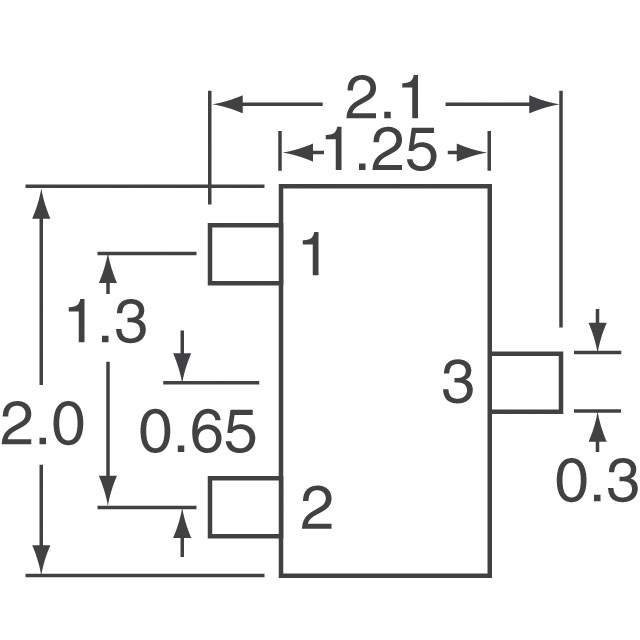

Case / Package SMini3-F2
Win Source Part Number 1004564-2SD1823GRL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SD1823GRL CAD Model

Description

The Panasonic Electronic Components 2SD1823GRL transistor is a high-quality NPN transistor that has a frequency transition of 120MHz.

  • Transistor Type: NPN
  • Frequency Transition: 120MHz
  • Maximum Current Collector: 50mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 40V
  • Maximum Power Dissipation: 150mW
  • Collector Cut-off Current: 1μA
  • Typical Gain (hFE): 400 @ 2mA and 10V
  • Maximum Vce (sat): 200mV @ 1mA and 10mA
  • Category: Discrete semiconductor products
  • Popularity: Medium
