The BH15MA3WHFV is a low-dropout (LDO) linear regulator from Rohm Semiconductor. It is designed to provide a stable 1.5V output voltage. The regulator is designed for use in a variety of electronic devices that require a clean and stable power supply. It excels in applications where minimizing power loss and maintaining a consistent voltage output are critical.

Applications

• Microcontroller power supplies
• Memory power supplies
• FPGA power supplies
• Sensor power supplies
• Portable electronic devices

Features

• Fixed output voltage of 1.5V
• Output Current: 300mA
• Low dropout voltage
• Overcurrent protection
• Thermal shutdown protection
• Short-circuit protection

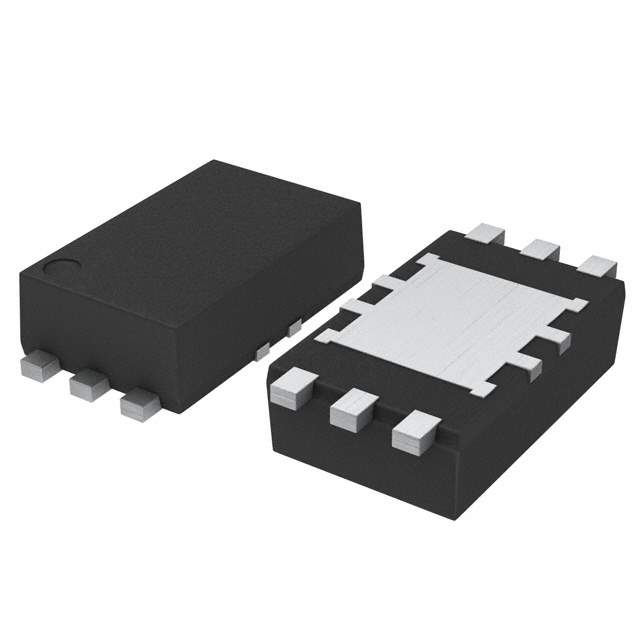

• HTSOP-6 Package

Benefits

• Stable and reliable voltage regulation: Guarantees consistent performance of connected components.
• High efficiency: Minimizes power dissipation, important for battery-powered applications.
• Integrated protection features: Protects against overcurrent, thermal overload, and short circuits, enhancing overall system reliability.
• Compact size: Allows integration into small form-factor designs.
• Simplified circuitry: Reduces the number of external components required, lowering cost and complexity.

Additional Details

The BH15MA3WHFV operates with a low quiescent current, maximizing efficiency in low-power applications. It is engineered to maintain stable output voltage across a range of input voltages and operating temperatures. The integrated protection features ensure robust and reliable operation. This part is often used for noise-sensitive applications that require a very clean voltage rail. The HTSOP-6 package provides good thermal performance and is designed for surface mount assembly. The device is lead-free and compliant with RoHS standards, meeting environmental regulations.
