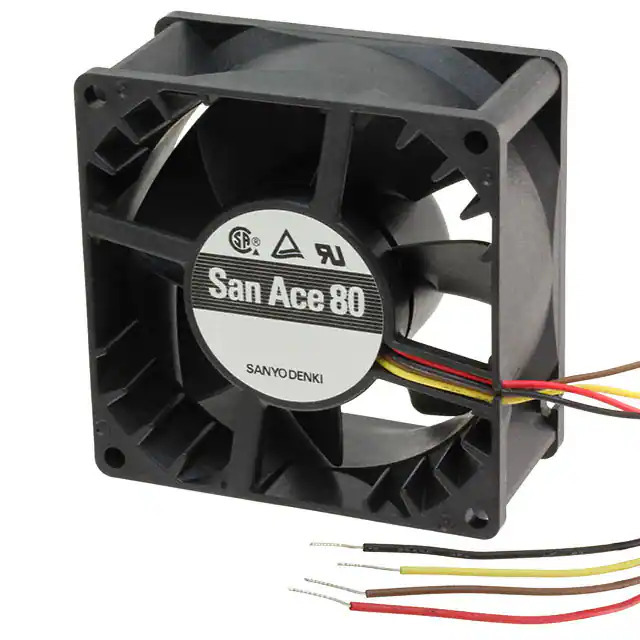

9GA0812P1G61 Sanyo Denki America Inc.
Same model may have multiple batches, images only for reference.

9GA0812P1G61

Part No 9GA0812P1G61
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 80X38MM 12VDC WIRE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 80
Package Box
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 80mm L x 80mm H
Width 38.00mm
Air Flow 100.6 CFM (2.82m³/min)
Static Pressure 1.930 in H2O (480.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise 60.0dB(A)
Power (Watts) 14.4 W
RPM 10500 RPM
Termination 4 Wire Leads
Ingress Protection -
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.353 lb (160.12 g)
Current Rating (Amps) 1.20A
Voltage Range 10.8 ~ 13.2VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. Varies Based on Temperature
Base Product Number 9GA0812
MSL Level Not Applicable
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368466-9GA0812P1G61
Ultra Librarian 3D Model Ultra Librarian 9GA0812P1G61 CAD Model

Description

The San Ace 80 DC Brushless Fan is a high-quality electronic component designed for thermal management in various applications.

  • Voltage Rating: 12VDC
  • Current Rating: 1.20A
  • Power Output: 14.4W
  • Shape: Square
  • Dimensions: 80mm L x 80mm H
  • Features: Locked rotor protection, PWM control, and a speed sensor (tach)
  • Maximum Speed: 10500 RPM
  • Air Flow: 100.6 CFM
  • Static Pressure: 1.930 in H2O
  • Bearing: Ball Bearing
  • Material: Plastic
  • Approvals: CSA, TUV, and UL
  • Suitable for: Cooling systems in electronic devices and equipment
