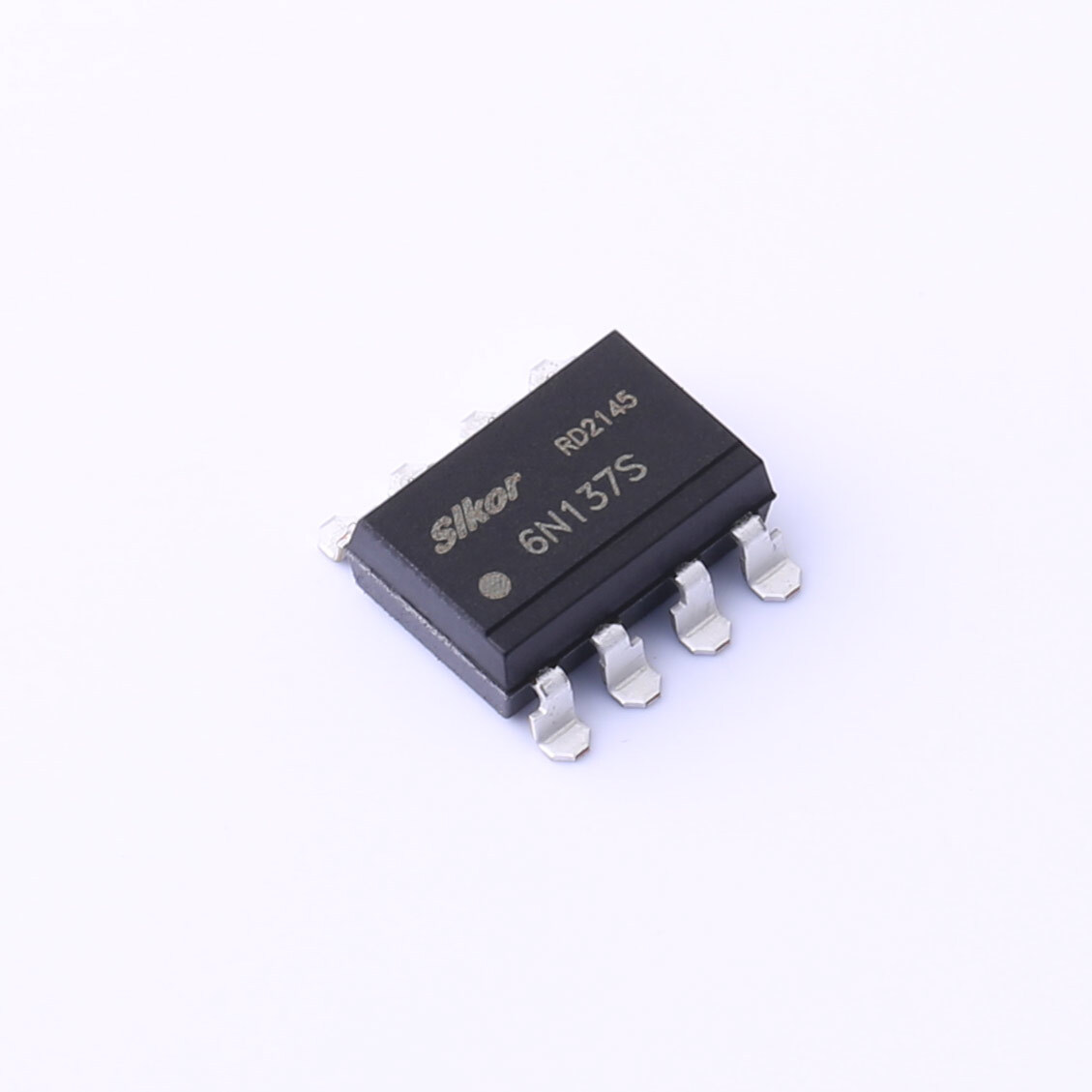

Same model may have multiple batches, images only for reference.

6N137S

Name: 6N137S
Brand: ShenZhen SlkorMicro Semicon Co. Ltd
SKU: WS1330106
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	6N137S
Manufacturer	ShenZhen SlkorMicro Semicon Co. Ltd
Catalog	Optocouplers/Photocouplers
Description	10Mbit/s DC SOP-8-2.54mm
Datasheet	6N137S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1330106-6N137S
Package	Cut Tape (CT)
Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Input Type	DC
Output Type	Tri-State
Current - Output / Channel	50mA
Data Rate	10Mbps
Propagation Delay tpLH / tpHL (Max)	75ns, 75ns
Rise / Fall Time (Typ)	27ns, 7ns
Voltage - Forward (Vf) (Typ)	1.38V
Current - DC Forward (If) (Max)	25mA
Voltage - Supply	2.7V ~ 3.6V, 4.5V ~ 5.5V
Grade	-
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	8-SMD, Gull Wing
Supplier Device Package	8-SMD-S
Package	Tube
Common Mode Transient Immunity (Min)	10kV/µs
Output Type	Open Collector
Data Rate	15MBd
Rise / Fall Time (Typ)	22ns, 6.9ns
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	7V
Operating Temperature	-40°C ~ 85°C
Supplier Device Package	8-SMD
Product Status	Obsolete
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	10kV/µs (Typ)
Rise / Fall Time (Typ)	50ns, 12ns
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	50mA
Voltage - Supply	4.5 V ~ 5.5 V
Ultra Librarian 3D Model	Ultra Librarian 6N137S CAD Model
