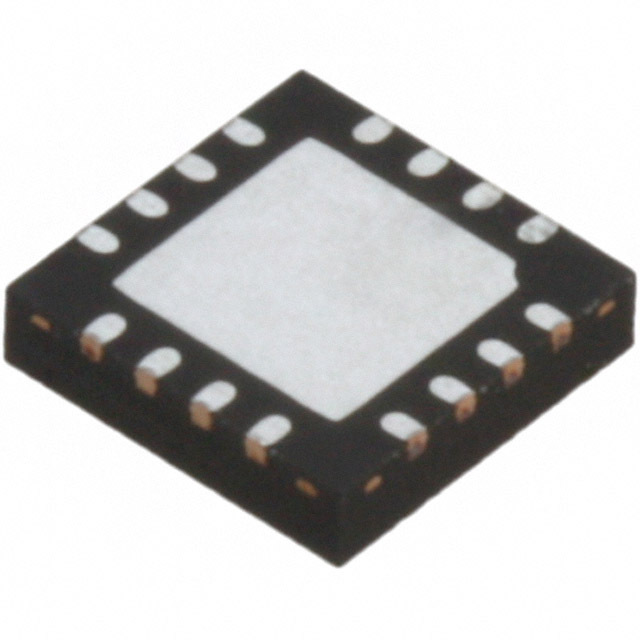

Same model may have multiple batches, images only for reference.
AS196-307LF Skyworks Solutions Inc.
Same model may have multiple batches, images only for reference.

AS196-307LF

Part No AS196-307LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description IC SW SPDT LF-6GHZ GAAS 16LPCC
Datasheet
AS196-307LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Frequency - Lower 300kHz
Frequency - Upper 6GHz
Isolation @ Frequency 30dB @ 6GHz (typ)
Insertion Loss @ Frequency 1.6dB @ 6GHz
IIP3 46dBm (typ)
Topology Absorptive
Circuit SPDT
P1dB 27dBm (typ) IP1dB
Impedance 50 Ohm
Temperature Range - Operating -40°C to 85°C
Supply Voltage - Operating 2.6 V to 5 V
RF Type GSM, ISM, PCS, WCDMA
Case / Package 16-LPCC (4x4)
Win Source Part Number 010238-AS196-307LF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian AS196-307LF CAD Model

Description

AS196-307LF

The AS196-307LF switch is engineered for high-speed signal routing, catering to the needs of advanced communication systems.

  • Applications:
    • Data communication networks
    • Satellite communication systems
    • High-frequency test equipment
  • Features and Benefits:
    • Ultra-fast response time enhances system performance
    • Exceptional frequency range for greater application variety
    • High-reliability design suitable for long-term use
  • Additional Details:
    • Designed to operate under challenging environmental conditions.
    • Supports wide temperature ranges.
