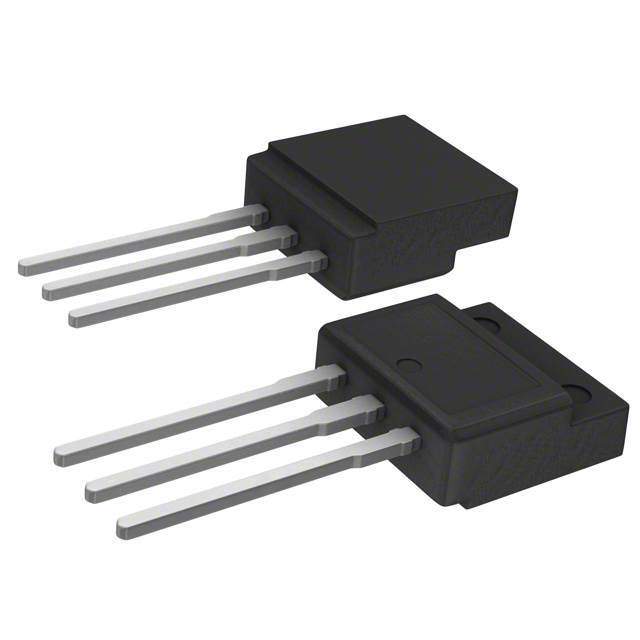

STFI20N65M5 - Power MOSFET by STMicroelectronics

The STFI20N65M5 is a state-of-the-art MDmesh™ M5 series Power MOSFET presented by STMicroelectronics, a global semiconductor leader. This device is designed to meet the efficiency and reliability requirements of modern high-performance power conversion systems.

Key Features

• High Voltage Capability: With a maximum V<sub>DS of 650V, the STFI20N65M5 can handle high voltage applications with ease, making it suitable for a variety of power supply and conversion systems.
• Low On-Resistance: The R<sub>DS(on) is exceptionally low, which translates to reduced conduction losses and improved overall efficiency of the system in which it is incorporated.
• Fast Switching: The fast-switching capability of this MOSFET minimizes switching losses and is ideal for high-frequency operations.
• Enhanced Power Density: Its high current rating and compact TO-220FP package allow for improved power density in design.
• Reduced Gate Charge: A lower Q<sub>g results in lower driving power requirements and simplifies the gate drive design.

Applications

The STFI20N65M5 is versatile and can be used in a wide range of applications, including:

• Switched Mode Power Supplies (SMPS)
• LED Lighting
• High-Performance Computing
• Motor Drives
• Welding Equipment
• Solar Inverters
• Electric Vehicle Charging Stations

Reliability and Performance

STMicroelectronics ensures that the STFI20N65M5 meets the highest quality and reliability standards. The device is built with robust package construction, offering improved avalanche capability and thermal resistance. Its performance is characterized by a wide operating junction temperature range, making it reliable in extreme conditions.

Environmental Impact

Committed to environmental responsibility, STMicroelectronics has designed the STFI20N65M5 to comply with the RoHS directive, which restricts the use of certain hazardous substances in electrical and electronic equipment.

With its combination of high efficiency, reliability, and environmental consideration, the STFI20N65M5 Power MOSFET is an excellent choice for designers looking to create sustainable and energy-efficient power systems.
