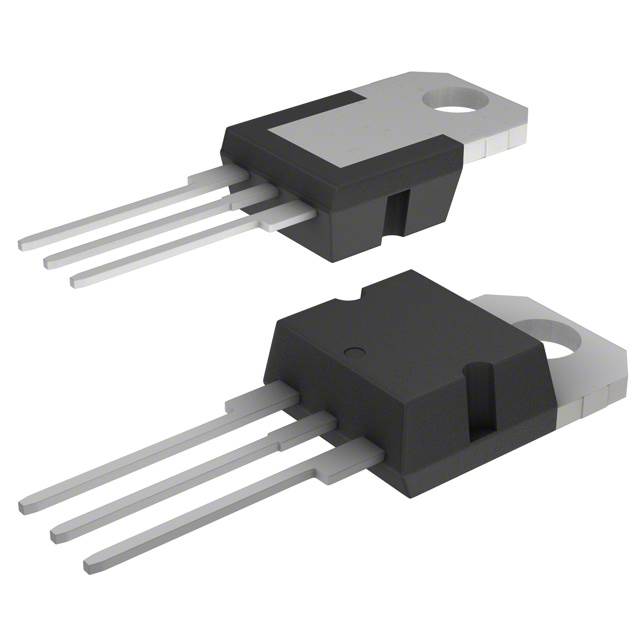

The STP22NM60N is a high-performance N-channel Power MOSFET produced by STMicroelectronics, employing the innovative MDmesh™ II Plus™ technology. This component is designed to offer superior switching performance with a very low on-resistance, making it an ideal choice for a wide range of high-efficiency applications.

Key Features

• Voltage Rating: The STP22NM60N is rated for a drain-source voltage (V<sub>DS) of 600 V, providing a wide safety margin for applications requiring high voltage operation.
• Low On-Resistance: With a typical on-resistance (R<sub>DS(on)) of just 0.190 Ohm, this MOSFET ensures minimal power loss and improved overall efficiency.
• Current Capacity: It can handle a continuous drain current (I<sub>D) of 17 A, making it suitable for high current applications.
• Reduced Gate Charge: The device features a low gate charge (Q<sub>g), which enhances its switching performance and reduces switching losses.
• Enhanced dv/dt Capability: The MOSFET is engineered to withstand high dv/dt rates, ensuring reliability under fast-switching conditions.

Applications

The STP22NM60N is versatile and can be used in a variety of applications, including:

• Switching power supplies and DC/DC converters
• Motor control systems
• LED lighting solutions
• Power management circuits
• High-performance computing

Advantages

Implementing the STP22NM60N in your designs brings several advantages:

• The MDmesh™ II Plus™ technology ensures high efficiency due to the low on-resistance and low gate charge.
• Its robustness and ability to handle high dv/dt rates improve system reliability and longevity.
• The MOSFET's high voltage and current ratings allow for versatile use across multiple high-power applications.

STMicroelectronics' commitment to innovation is evident in the STP22NM60N, providing engineers with a reliable and efficient component that can enhance the performance of their power management systems.
