Product Overview: TPS54360EVM-182 Evaluation Module

The TPS54360EVM-182 is a fully assembled and tested circuit for evaluating the TPS54360 DC-DC converter. Manufactured by Texas Instruments, this evaluation module (EVM) provides an efficient, high-performance solution for a variety of applications. The TPS54360 is a 60V, 3.5A, step-down regulator with an integrated high-side MOSFET, which makes it suitable for systems that require a wide input voltage range.

Key Features

• Wide Input Voltage Range: The TPS54360EVM-182 operates over a broad input voltage range from 3.5V to 60V, accommodating a variety of power sources.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.8V to 58V, providing the flexibility needed for different voltage requirements.
• High Efficiency: With its integrated 200mΩ high-side MOSFET, the EVM ensures high efficiency at light loads with a pulse skipping Eco-mode™.
• Thermal Protection: The module includes thermal shutdown and overcurrent protection features that enhance the safety and durability of the application.
• Frequency Synchronization: The TPS54360EVM-182 offers frequency synchronization to external clocks, which helps in reducing noise and managing radiated emissions.

Applications

The versatility of the TPS54360EVM-182 makes it suitable for a wide range of applications, including:

• Industrial power systems
• Automotive infotainment and telematics
• Telecommunication equipment
• Aftermarket automotive accessories
• Point-of-load conversions

Design and Layout

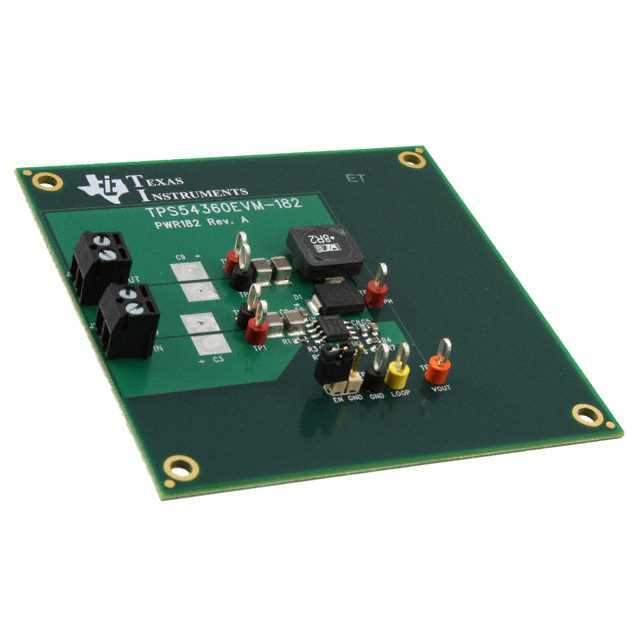

The TPS54360EVM-182 is designed with high-quality components and a layout that minimizes noise and interference, ensuring optimal performance in real-world conditions. The EVM includes input and output connectors for easy integration into existing systems. Additionally, it features several test points for convenient measurement of the regulator’s performance characteristics.

Support and Resources

For designers and engineers, Texas Instruments provides extensive support and resources for the TPS54360EVM-182, including detailed datasheets, user guides, and design files. This documentation facilitates a comprehensive understanding of the module's capabilities and simplifies the process of integrating the EVM into a final product design.
