Introducing the TXB0102DCUR by Texas Instruments

The TXB0102DCUR is a state-of-the-art, 2-bit non-inverting translator that is a part of Texas Instruments' extensive logic-level translation portfolio. This device is designed to provide seamless voltage level translation for mixed-voltage systems, making it an essential component for modern multi-voltage digital electronic systems.

Key Features

• Bi-Directional Interface: With its 2-bit bi-directional translation capability, the TXB0102DCUR can transfer data between two different voltage domains seamlessly. Whether you are interfacing between a microcontroller operating at 3.3V and peripherals at 5V, or any other combination, this translator has you covered.
• Auto-Direction Sensing: The device's auto-direction sensing feature simplifies the design process by eliminating the need for a direction control signal, which is often required in traditional level translators.
• Low On-State Resistance: The TXB0102DCUR boasts low on-state resistance (Ron), providing a high-speed, low-distortion interface that is ideal for applications such as push-pull driven lines.
• Wide Voltage Range: This translator supports a wide range of input and output voltage levels (1.65V to 5.5V), ensuring compatibility with a variety of digital logic levels.
• ESD Protection: The device comes with integrated electrostatic discharge (ESD) protection circuitry, which safeguards your system against the damaging effects of static electricity.

Applications

The TXB0102DCUR is well-suited for a broad array of applications, including but not limited to:

• Mobile Phones
• PDAs
• Digital Cameras
• Portable Media Players
• Various consumer electronics

Package and Reliability

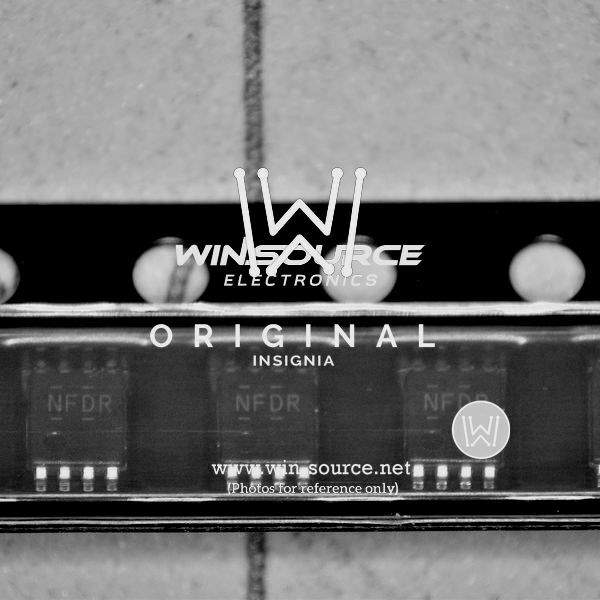

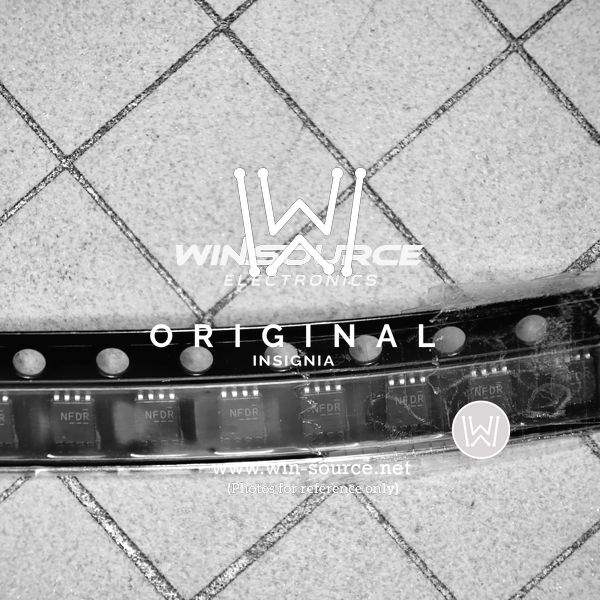

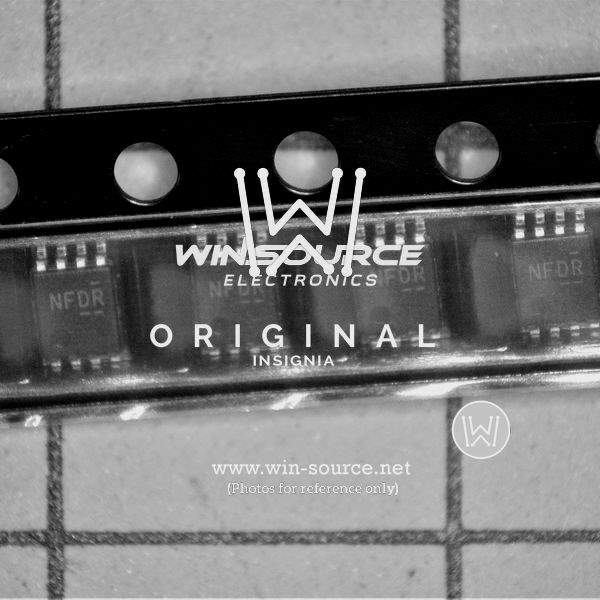

Encased in a compact VSSOP (Very-Thin Shrink Small Outline Package), the TXB0102DCUR is designed for space-constrained applications. Texas Instruments ensures reliability and performance by rigorously testing their products to meet high industry standards.

Whether you're developing the next generation of consumer electronics or working on high-speed digital interfaces, the TXB0102DCUR from Texas Instruments provides a reliable, high-performance solution for your voltage translation needs.
