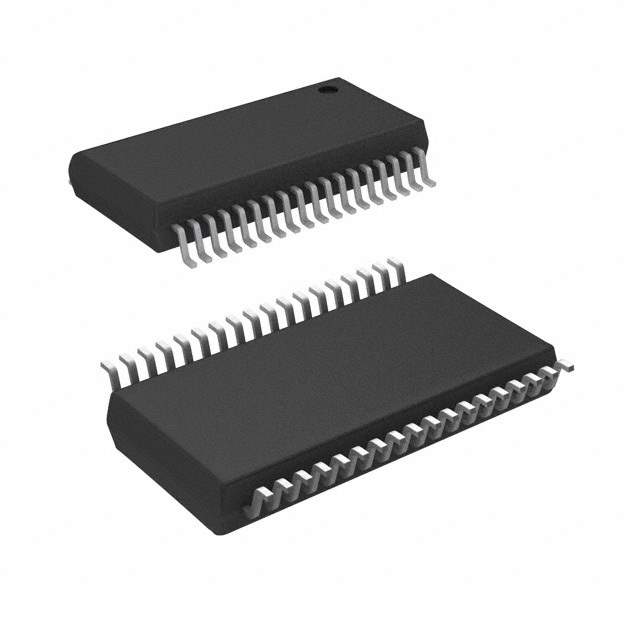

The UCC5630AMWPTRG4 is a robust and versatile SCSI (Small Computer System Interface) terminator manufactured by Texas Instruments. It is designed to ensure signal integrity in SCSI bus systems by providing the necessary termination for single-ended or differential bus lines. This advanced component is a key solution for applications that require reliable data transfer at high speeds, such as servers, storage systems, and industrial computers.

Key Features

• Multi-Mode Support: The UCC5630AMWPTRG4 supports both LVD (Low Voltage Differential) and SE (Single-Ended) modes, making it highly adaptable to different SCSI configurations.
• 9-Line Termination: This device is capable of terminating up to 9 lines, which covers the full range of SCSI signals, ensuring comprehensive compatibility with SCSI standards.
• Thermal Protection: Built-in thermal protection safeguards the device from overheating, thus ensuring long-term reliability and performance.
• Low Power Dissipation: The terminator operates with low power dissipation, which is critical for maintaining efficiency in system designs.
• High Impedance in Power-Down: When powered down, the UCC5630AMWPTRG4 presents a high impedance to the SCSI bus, minimizing the impact on the bus and allowing for safe hot-swapping.

Applications

The UCC5630AMWPTRG4 is ideal for a range of high-performance applications, including:

• Server and workstation SCSI buses
• RAID (Redundant Array of Independent Disks) systems
• Storage Area Networks (SAN)
• Data center infrastructure
• Industrial control systems with SCSI interfaces

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the UCC5630AMWPTRG4 is no exception. It is manufactured using industry-leading techniques and is subjected to rigorous testing to ensure it meets the high standards expected by designers and engineers across the globe. This product is a testament to Texas Instruments' dedication to providing components that lead in performance, durability, and reliability.
