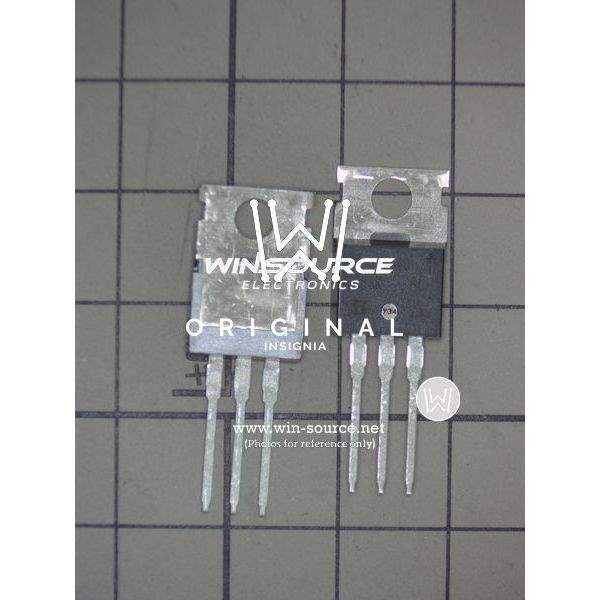

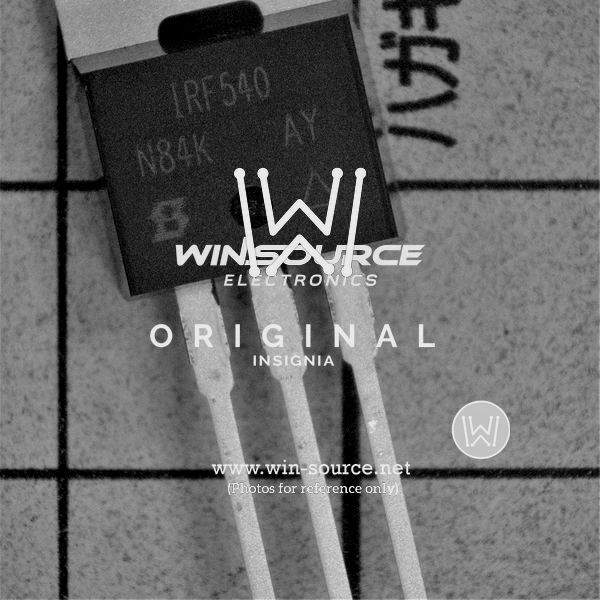

IRF540PBF

Part No IRF540PBF
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description Trans MOSFET N-CH 100V 28A 3-Pin(3+Tab) TO-220AB / MOSFET N-CH 100V 28A TO-220AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 100V
Continuous Drain Current at 25°C 28A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 72nC @ 10V
Max Input Capacitance 1700pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 150W (Tc)
Maximum Rds On at Id,Vgs 77 mOhm @ 17A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package TO-220AB
Dimension TO-220-3
Win Source Part Number 017437-IRF540PBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Power Management
Family Name IRF540
Introduction Date March 27, 2007
ECCN EAR99
Country of Origin China, Israel, Mexico, Taiwan
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian IRF540PBF CAD Model

Description

IRF540PBF from Vishay is a MOSFET device commonly considered for power switching and related circuit designs where engineers need a widely recognized transistor platform from an established manufacturer. It is often evaluated for use in power control stages, motor drive support circuits, switching supplies, and general-purpose high-speed switching designs, depending on the detailed electrical requirements of the application. Its market positioning is strongest in projects that value broad industry familiarity, second-source awareness, and easier maintenance planning during sourcing. For design and procurement teams, the main consideration is verification: the lifecycle status provided here is unknown, so long-term program support should be confirmed directly with Vishay or authorized channel partners before locking it into new designs. RoHS status information is not available from the provided input and should also be validated against the latest manufacturer datasheet, declaration, or compliance certificate. This makes IRF540PBF a component that may still be relevant operationally, but requires formal documentation checks before production release or compliance-sensitive procurement.
