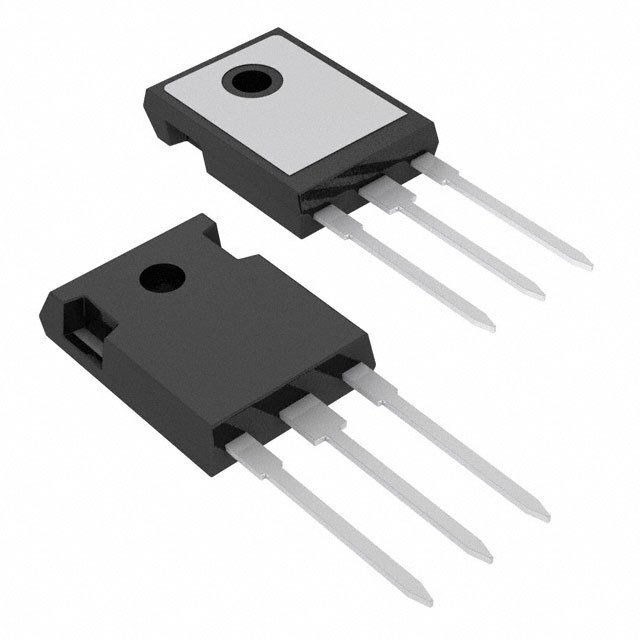

IRFPE50PBF Vishay IRFPE50PBF Real Image
Same model may have multiple batches, images only for reference.
IRFPE50PBF Vishay IRFPE50PBF Real Image
IRFPE50PBF Vishay IRFPE50PBF Real Image
Same model may have multiple batches, images only for reference.

IRFPE50PBF

Part No IRFPE50PBF
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 800V 7.8A TO-247AC
Datasheet
IRFPE50PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 800V
Continuous Drain Current at 25°C 7.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 200nC @ 10V
Max Input Capacitance 3100pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 190W (Tc)
Maximum Rds On at Id,Vgs 1.2 Ohm @ 4.7A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-247-3
Dimension TO-247-3
Win Source Part Number 138054-IRFPE50PBF
Family Name IRFPE50
Introduction Date March 27, 2007
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRFPE50PBF CAD Model

Description

The Vishay IRFPE50PBF is a high popularity N-Channel MOSFET.

  • Product: Discrete Semiconductor Product
  • Power Dissipation: 190W (Tc)
  • Package Type: TO-247-3
  • Dimension: TO-247-3
  • Maximum Rds On at Id,Vgs: 1.2 Ohm @ 4.7A, 10V
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Win Source Part Number: 138054-IRFPE50PBF
