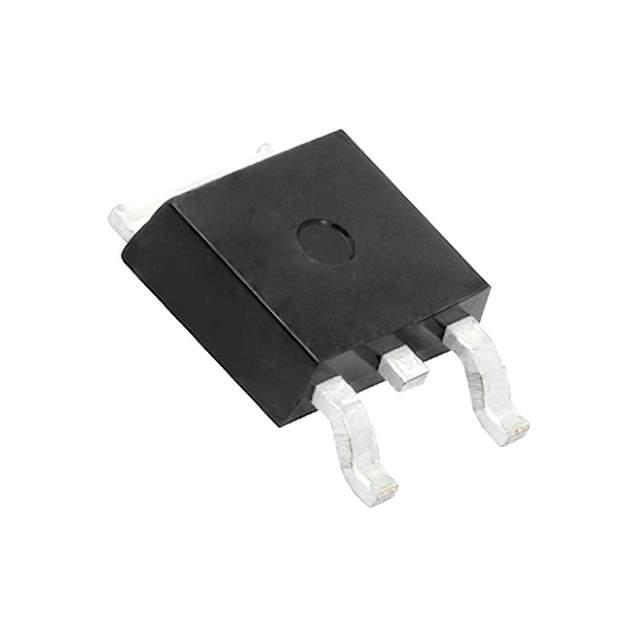

SQD40052EL_GE3

Name: SQD40052EL_GE3
Brand: Vishay
SKU: 1095806
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SQD40052EL_GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	AUTOMOTIVE N-CHANNEL 40 V (D-S) / N-Channel 40 V 30A (Tc) 62W (Tc) Surface Mount TO-252AA
Datasheet	SQD40052EL_GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Vishay Siliconix
Series	TrenchFET®
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	52 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2600 pF @ 25 V
Power Dissipation (Max)	62W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	TO-252AA
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	742-SQD40052EL_GE3TR,742-SQD40052EL_GE3CT,742-SQD40052EL_GE3DKR
Standard Package	2,000
Win Source Part Number	1095806-SQD40052EL_GE3
Ultra Librarian 3D Model	Ultra Librarian SQD40052EL_GE3 CAD Model

Alternative Products

Description

The SQD40052EL_GE3 is a N-Channel MOSFET transistor that is used in various electronic devices manufactured by Vishay Siliconix.

Series: TrenchFET
Drain to Source Voltage: 40V
Continuous Drain Current: 30A @ 25°C
Rds On (Max) @ Id, Vgs: 6mOhm @ 15A, 10V
Vgs(th) (Max) @ Id: 2.2V @ 250μA
Power Dissipation (Max): 62W (Tc)
Gate Charge (Qg) (Max) @ Vgs: 52 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 2600 pF @ 25 V
Operating Temperature: -55°C to 175°C (TJ)
