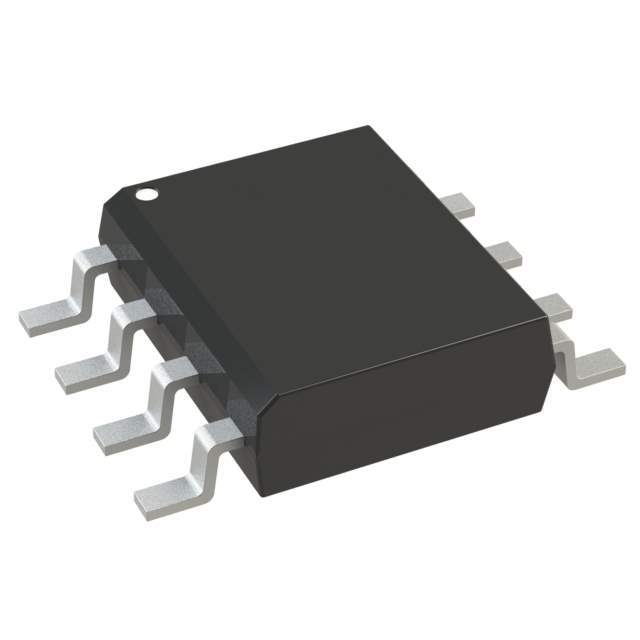

Same model may have multiple batches, images only for reference.
DMT3020LSDQ-13Diodes Incorporated
Same model may have multiple batches, images only for reference.

DMT3020LSDQ-13

Part No DMT3020LSDQ-13
Manufacturer Diodes Incorporated
Catalog TRANSISTORS
Description MOSFET 2N-CH 30V 16A 8SO
Datasheet
DMT3020LSDQ-13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor Products> Transistors FETs, MOSFETs FET, MOSFET Arrays
Part Status Active
Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C 16A (Tc)
Rds On (Max) @ Id, Vgs 20mOhm @ 9A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 7nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 393pF @ 15V
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Win Source Part Number WS1310103-DMT3020LSDQ-13
Ultra Librarian 3D Model Ultra Librarian DMT3020LSDQ-13 CAD Model

Description

This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in:

ā— Backlighting ā— Power Management Functions ā— DC-DC Converters
