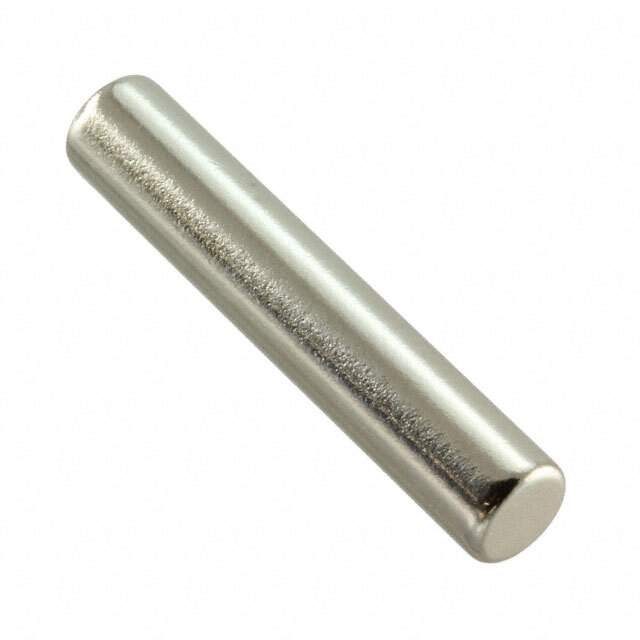

9016 Real Image
Same model may have multiple batches, images only for reference.

9016

Part No 9016
Manufacturer Radial Magnets, Inc.
Catalog Magnets - Multi Purpose Magnets
Description MAGNET 0.079"D X 0.315"THICK CYL / Magnet Neodymium Iron Boron (NdFeB) N35SH 0.079" Dia x 0.315" H (2.00mm x 8.00mm)
Datasheet
9016 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Magnets - Multi Purpose Magnets
Mfr Radial Magnets, Inc.
Package Bulk
Product Status Active
Shape Cylindrical
Magnetization Axial
Material Neodymium Iron Boron (NdFeB)
Finish NiCuNi
Grade N35SH
Gauss Strength 6549G (Surface Gauss)
Size 0.079" Dia x 0.315" H (2.00mm x 8.00mm)
Temperature Range - Operating 150°C (TA)
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8505.11.0070
Win Source Part Number 908668-9016
Ultra Librarian 3D Model Ultra Librarian 9016 CAD Model

Description

The Neodymium Iron Boron (NdFeB) cylindrical magnet is a multi-purpose magnet suitable for various sensor and transducer applications.

  • Type: Neodymium Iron Boron (NdFeB) cylindrical magnet
  • Application: Sensor and Transducer
  • Manufacturer: Radial Magnets, Inc.
  • Size: 0.079" Dia x 0.315" H (2.00mm x 8.00mm)
  • Finish: NiCuNi
  • Operating Temperature: Up to 150°C
  • Gauss Strength: 6549G
  • Product Status: Active
  • Magnetization: Axial
  • Grade: N35SH
