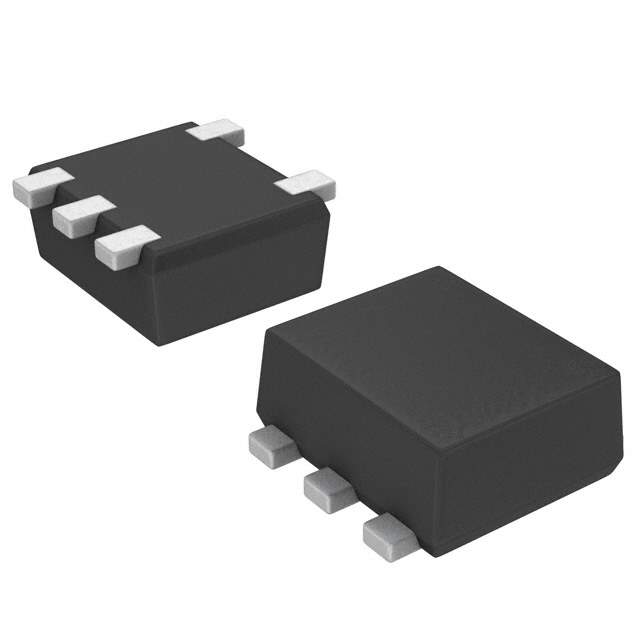

Same model may have multiple batches, images only for reference.

US5U38TR

Name: US5U38TR
Brand: Rohm Semiconductor
SKU: 396338
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	US5U38TR
Manufacturer	Rohm Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET P-CH 20V 1A TUMT5
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Rohm Semiconductor
Packaging	Reel - TR
Status	Active
Polarity	P-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	20V
Continuous Drain Current at 25°C	1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Gate-Source Threshold Voltage	2V @ 1mA
Max Gate Charge	2.1nC @ 4.5V
Max Input Capacitance	150pF @ 10V
Maximum Gate-Source Voltage	±12V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	1W (Ta)
Maximum Rds On at Id,Vgs	390 mOhm @ 1A, 4.5V
Temperature Range - Operating	150°C (TJ)
Mounting	SMD (SMT)
Case / Package	TUMT5
Dimension	6-SMD (5 Leads), Flat Lead
Win Source Part Number	036148-US5U38TR
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	3k pcs
Ultra Librarian 3D Model	Ultra Librarian US5U38TR CAD Model

Alternative Products

Description

This electronic component is a MOSFET manufactured by Rohm Semiconductor.

Win Source Part Number: 036148-US5U38TR
Drain-Source Breakdown Voltage: 20V
Continuous Drain Current: 1A (Ta)
Maximum Rds On @ Id,Vgs: 390 mOhm @ 1A, 4.5V
Supply and Demand Status: balanced
Package: 3k pcs
