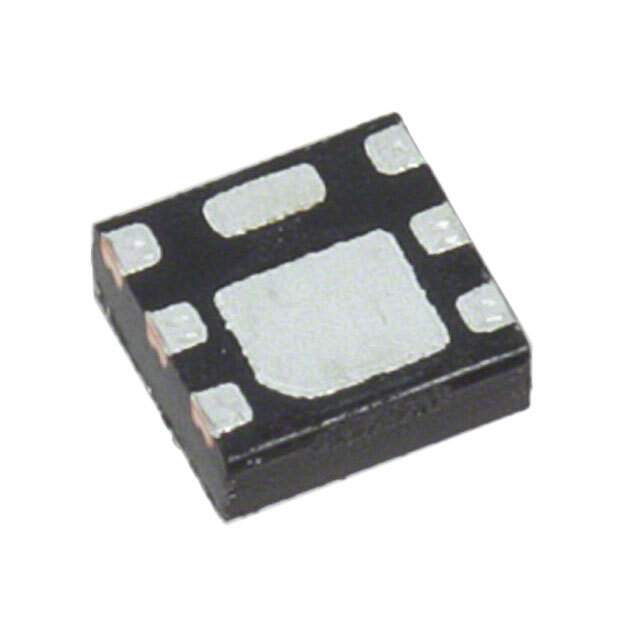

SSM6J507NU,LF

Name: SSM6J507NU,LF
Brand: Toshiba Semiconductor and Storage
SKU: 897736
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SSM6J507NU,LF
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET P-CH 30V 10A 6UDFNB / P-Channel 30 V 10A (Ta) 1.25W (Ta) Surface Mount 6-UDFNB (2x2)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Toshiba Semiconductor and Storage
Series	U-MOSVI
Package	Tape & Reel
Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	10A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	20mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	20.4 nC @ 4.5 V
Vgs (Max)	+20V, -25V
Input Capacitance (Ciss) (Max) @ Vds	1150 pF @ 15 V
Power Dissipation (Max)	1.25W (Ta)
Temperature Range - Operating	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-UDFNB (2x2)
Package / Case	6-WDFN Exposed Pad
Base Product Number	SSM6J507
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	897736-SSM6J507NU,LF
Ultra Librarian 3D Model	Ultra Librarian SSM6J507NU,LF CAD Model

Alternative Products

Description

The SSM6J507NU,LF is a P-Channel MOSFET from Toshiba Semiconductor and Storage.

Channel Type: P-Channel
Series: U-MOSVI
Package: 6-WDFN Exposed Pad
Drain to Source Voltage: 30V
Continuous Drain Current: 10A @ 25°C
Maximum Rds On: 20mOhm
Vgs(th): 2.2V
Power Dissipation: Up to 1.25W
Gate Charge: 20.4 nC @ 4.5V
Input Capacitance: 1150 pF @ 15V
Mounting Type: Surface Mount
Operating Temperature Range: Up to 150°C
Manufacturer: Toshiba Semiconductor and Storage
