231-433/001-000 WAGO Corporation
Same model may have multiple batches, images only for reference.

231-433/001-000

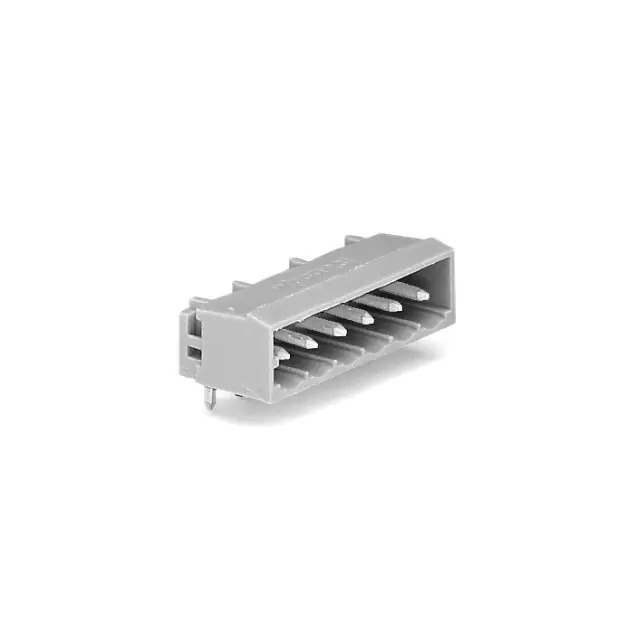

Part No 231-433/001-000
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description THT MALE HEADER; 1.0 X 1.0 MM SO / 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMIDI Classic
Package Box
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Pitch 0.197" (5.00mm)
Header Orientation 90°, Right Angle
Plug Wire Entry -
Termination Style Solder
Mounting Type Through Hole
Current - IEC 12A
Voltage - IEC 630 V
Current - UL 10 A
Voltage - UL 600 V
Wire Gauge or Range - AWG -
Wire Gauge or Range - mm² -
Color Gray
Temperature Range - Operating -60°C ~ 100°C
Contact Mating Finish Tin
Features -
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length -
Contact Material Electrolytic Copper
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length 0.150" (3.81mm)
Insulation Height 0.331" (8.40mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364634-231-433/001-000
Ultra Librarian 3D Model Ultra Librarian 231-433/001-000 CAD Model

Description

The WAGO Corporation MCSMIDI Classic series is a shrouded header with male pins, designed for through-hole mounting.

  • Housing Color: Gray
  • Housing Material: Polyamide (PA66) and Nylon 6/6
  • Flammability Rating: UL94 V-0
  • Positions: 3
  • Level: 1
  • Pitch: 0.197" (5.00mm)
  • Contact Material: Electrolytic Copper
  • Contact Mating Finish: Tin
  • Current Rating (IEC): 12A
  • Current Rating (UL): 10A
  • Voltage Rating (UL): 600V
  • Insulation Height: 0.331" (8.40mm)
  • Contact Tail Length: 0.150" (3.81mm)
  • Orientation: 90° Right Angle
  • Termination Style: Solder
  • Suitable for: Connectors, Interconnects, and Terminal Blocks Applications
