Linear Technology's LTC3554EUD-3#PBF Power Management IC

The LTC3554EUD-3#PBF is a high-performance, multifunction power management integrated circuit (PMIC) designed by Linear Technology to cater to the demanding needs of portable electronic devices. This compact and efficient IC combines a USB-compatible linear charger, a PowerPath manager, an overvoltage protection circuit, and multiple synchronous step-down regulators, making it an ideal solution for space-constrained applications.

Key Features

• Integrated Power Management: The LTC3554EUD-3#PBF integrates multiple functions including battery charging, power path management, and multiple output voltage regulators, streamlining the design process and reducing the bill of materials for portable devices.
• USB-Compatible Charger: The IC includes a standalone linear charger with selectable charge current up to 950mA, which can be powered from a USB port or an external power supply.
• PowerPath Control: The advanced PowerPath control feature allows for seamless transition between input power sources and battery power, ensuring a constant supply to the load even when switching power sources.
• Overvoltage Protection: The device incorporates overvoltage protection to safeguard the downstream circuitry from input voltage spikes, a crucial feature for enhancing the longevity and reliability of portable electronics.
• Synchronous Step-Down Regulators: The LTC3554EUD-3#PBF contains high-efficiency synchronous buck regulators with an output voltage range that is ideal for powering the core processor, memory, and I/O interfaces in modern portable devices.

Applications

The versatility of the LTC3554EUD-3#PBF makes it suitable for a wide range of portable applications, including:

• Smartphones and PDAs
• Portable media players
• Digital cameras
• Handheld GPS units
• Other USB-powered gadgets

Technical Specifications

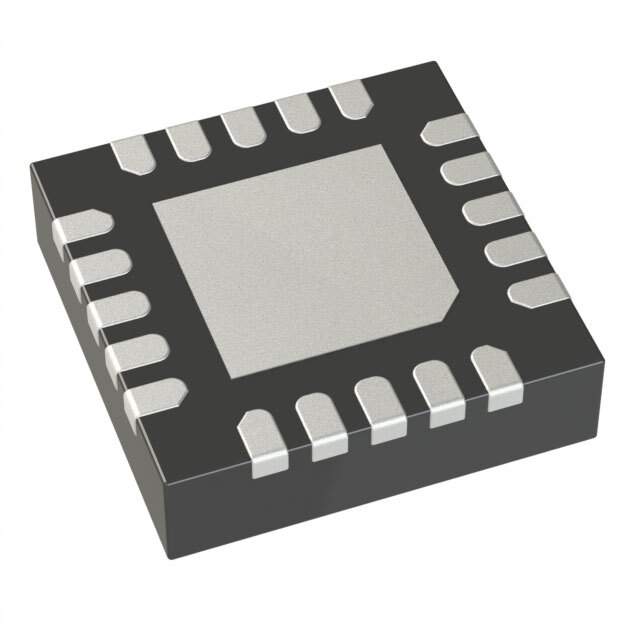

The LTC3554EUD-3#PBF operates within an input voltage range of 4.35V to 5.5V and offers programmable charge current up to 950mA. The synchronous step-down regulators are capable of delivering up to 400mA of continuous output current each. The IC's compact QFN-24 package and integrated functions make it an excellent choice for designers looking to maximize functionality while minimizing space.

In conclusion, the LTC3554EUD-3#PBF from Linear Technology is a sophisticated and versatile power management solution that delivers high efficiency, protection, and ease of use for a variety of portable electronic devices.
