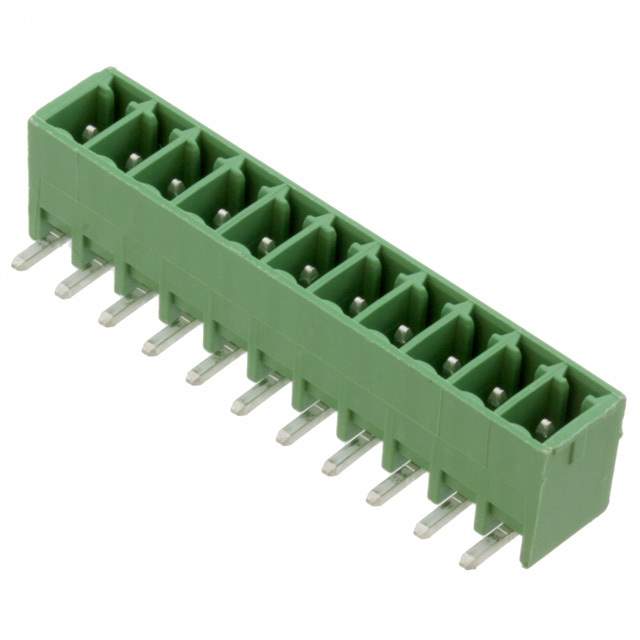

1844304 Real Image
Same model may have multiple batches, images only for reference.

1844304

Part No 1844304
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 11POS 90DEG 3.5MM / 11 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Datasheet
1844304 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Phoenix Contact
Packaging Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 11
Positions Per Level 11
Number of Levels 1
Pitch 0.138" (3.50mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Through Hole
Current - IEC 12A
Voltage - IEC 250 V
Current - UL 8 A
Voltage - UL 300 V
Color Green
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.134" (3.40mm)
Insulation Height 0.285" (7.25mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number MC1,5/11-G-3,5,277-6863,1844304-ND,MC 1,5/11-G-3,5
Standard Package 50
Win Source Part Number 1332189-1844304
Ultra Librarian 3D Model Ultra Librarian 1844304 CAD Model

Description

The Phoenix Contact 1332189-1844304 is a shrouded male pin header with 11 positions per level and a pitch of 3.50mm.

  • Positions per Level: 11
  • Pitch: 3.50mm
  • Mounting: Through-hole
  • Orientation: Right-angle (90 degrees)
  • Current Rating: 12A
  • Voltage Rating (IEC): 250V
  • Current Rating (UL): 8A
  • Voltage Rating (UL): 300V
  • Housing Material: Polybutylene terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Contact Mating Finish: Tin
  • Termination Style: Solder
  • Color: Green
  • Standard Package: 50
