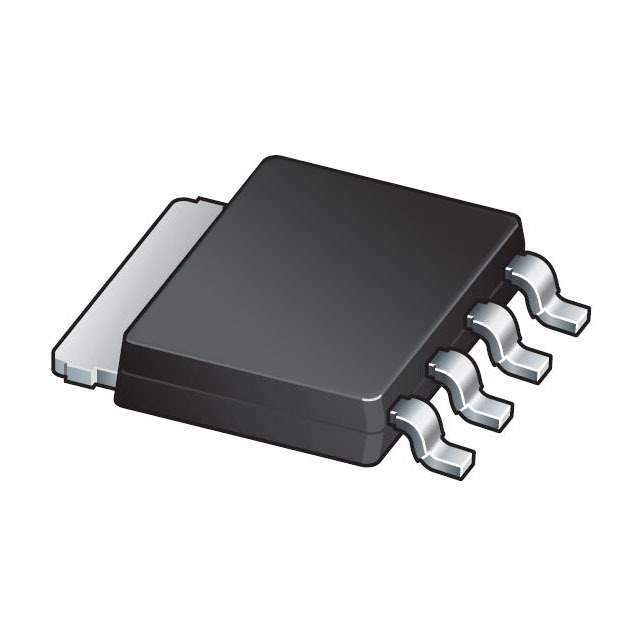

The NXP PH3430AL is a state-of-the-art, high-performance MOSFET designed for a wide array of applications. As a product of NXP Semiconductors, a leader in the industry, the PH3430AL is engineered to deliver exceptional efficiency and power handling capabilities. This makes it an ideal choice for power management tasks in both consumer and industrial electronics.

Key Features

• Low On-Resistance: The PH3430AL boasts a very low on-resistance, which significantly reduces conduction losses and improves overall efficiency in circuits.
• High-Speed Switching: This MOSFET is designed for high-speed switching applications, ensuring minimal delay and faster response times in power conversion systems.
• High Power Density: Its compact form factor combined with its ability to handle high currents makes it suitable for space-constrained applications while maintaining high power density.
• Thermal Performance: Excellent thermal characteristics allow the PH3430AL to operate reliably even under high temperature conditions, extending the lifespan of the end product.

Applications

The versatility of the NXP PH3430AL allows it to be used in various applications, including:

• DC/DC converters
• Power supplies for servers, computers, and telecommunications
• Motor drives
• Power management modules
• LED lighting solutions

Technical Specifications

Some of the technical specifications of the PH3430AL include:

• Drain-source voltage (V<sub>DS): up to 30V
• Continuous drain current (I<sub>D): up to 100A
• Power dissipation (P<sub>D): up to 156W
• Low threshold voltage to enable operation at lower voltages

With its robust design and high reliability, the NXP PH3430AL MOSFET is an excellent choice for designers and engineers looking to optimize their power management systems. Its advanced features ensure that it can meet the demands of a wide range of high-performance applications.
